Logo printing machine for polyamide thermal break strips

After-sales Service : Engineers Available to Service Overseas
Warranty : 1 Year
Type : Fiber Laser Marking Machine
Laser Visibility : Visible
Applicable Material : Metal & Some Nonmetal
Cooling System : Air Cooling
Technical Class : Pulse Laser
Laser Classification : Solid Laser
Marking Method : Scanning Marking
Scanning Speed : 0-12000mm/s
Marking Depth：0.01-0.2mm (adjustable)
Transport Package : Plastic Foam Film or Plywood Case
Specification : 20W /30W/ 50W
Trademark : Polywell
Origin : Zhangjiagang City, China
Voltage : 220V

Overview
Related Products

Product Description

1) Compact design and fast installation
2) Easy to be integrated at any position of the production line
3) Environmental protection and energy saving
4) Un-contact processing, lower power, fast laser marked and cost economy
5) Easy to use and excellent compatibility
6) Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface
7) Adopt fiber laser, safer and faster, long-life
8) The laser printer needn't consumable
9) High-speed, stable performance, adjustable power, applicable to all metal materials and most nonmetal material
10) Carve and cut product very convenience, depth could be adjustable

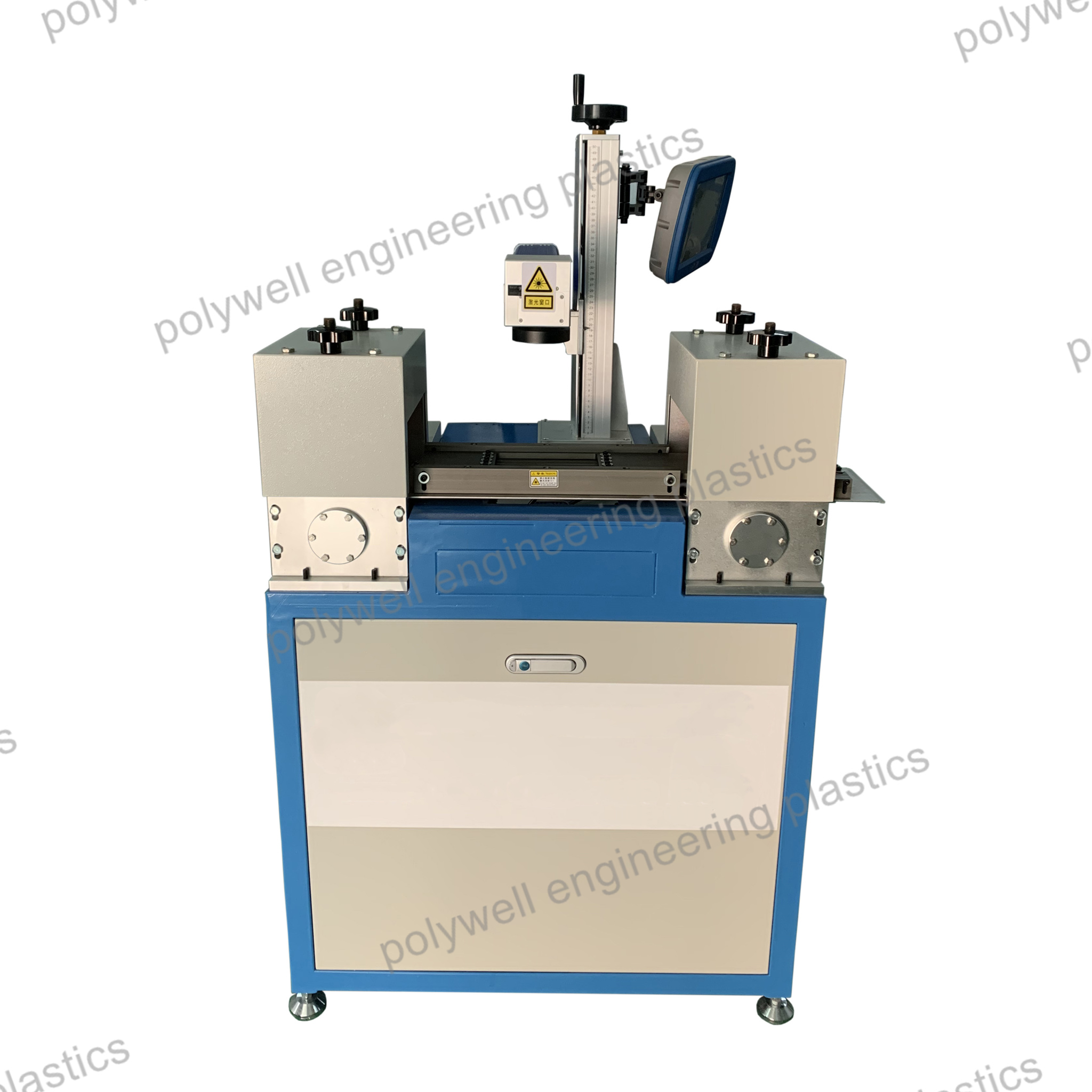

打码机 (4).jpg

Application

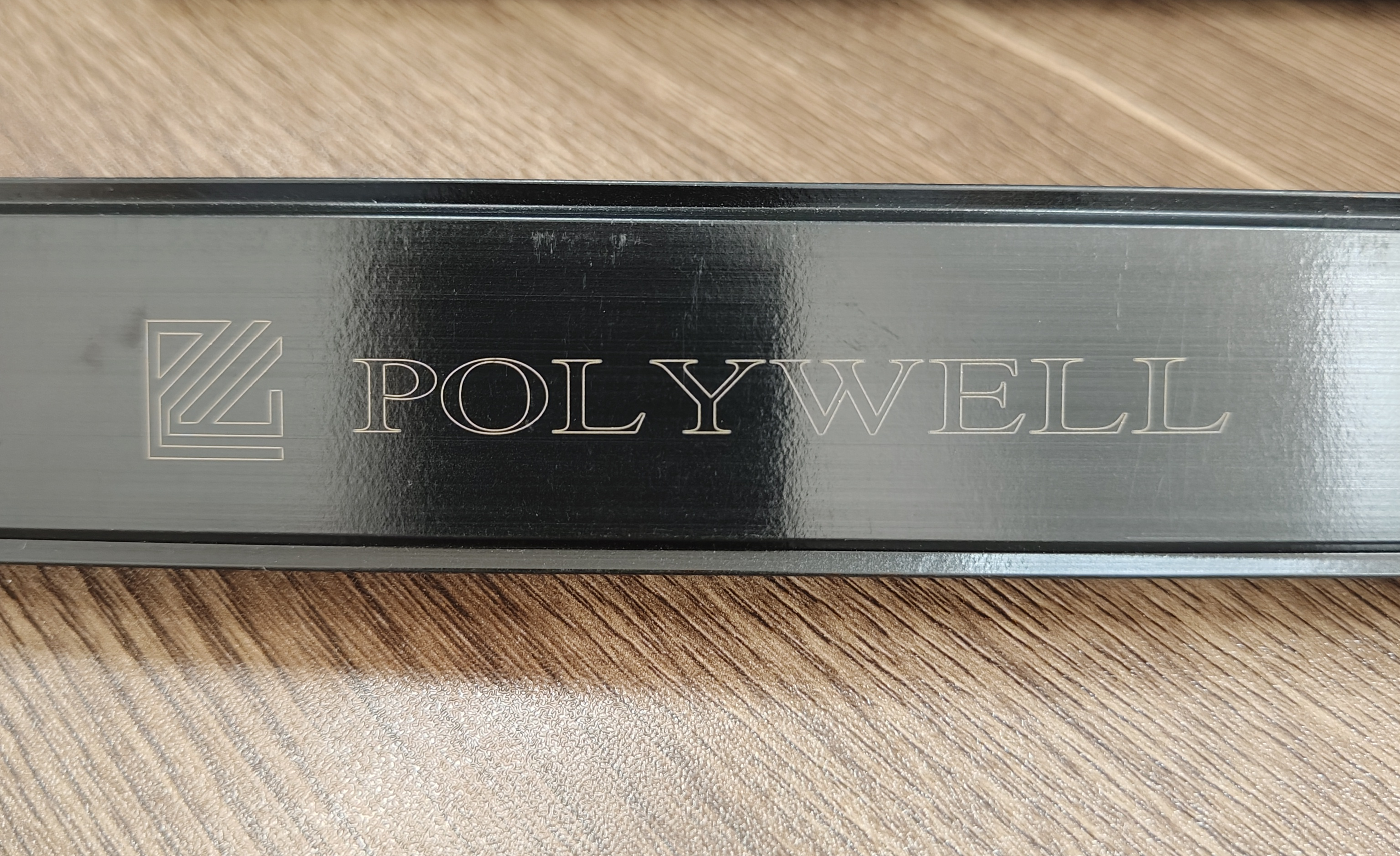

Marking of various metals and some non-metals materials, such as plastics, rubber, leather and other materials. Satisfy high-speed production requirements such as polyamide strip, automotive, and beverage.
This machine can mark patterns, text, QR code, serial number, counters, dates, and etc.

Parameter

Model	PWST-1020	PWS-1020	PWSS-2020	PWDS-2040	PWSS-3020	PWDS-3040
Laser Source	20W	20W	20W	40W	20W	40W
Marking Mode	Static marking	Dynamic marking
Laser Type	Fiber
Refrigerate Style	Air-cooled
Application	All metallic materials and most non-metallic materials
Marking Depth	≤0.2mm (depending on the material)
Line Width	0.02mm
Text Type	Fixed text, serial number, date, counter, shift code, random code etc.
User Interface	1	1	1	2	1	2
Marking position	Single side	Single side	Single side	Double side	Single side	Double side
Operation Temperature	5-38 ℃
Engraving Line Speed	≤12000mm/s
Repeatability Accuracy	±0.001mm
Voltage	220V 50Hz
Weight	100kg	100kg		150kg		180kg

FAQ

Q: What is your MOQ for the laser printer?
A: 1 set.

Q: How long is your delivery time?
A: Generally, it will take 15-25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: As new player of laser, how we learn to use the machine?
A: Polywell will provide paper and videos files to help customer operate the machine. If customer needs, we can also provide on site training service.

Q: Can we customize the machine?
A: We offer both single-sided and double-sided laser printers, and customers can choose according to their own requirements.

Q: What is the warranty for your machine?
A: Our warranty is one year. We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.

Q: What is your payment terms?
A: 50% T/T deposit before production, 50% T/T balance before loading.

Q:How to receive my order? Is it safe during shipping?A: We will arrange shipping by sea. The machine will be packed in foam wrapping film or plywood case very well. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.
