Recycled Plastic Granules Material Polyamide Nylon PA66 Insulaion Extrusion Granules for Building Material

Recycled Plastic Granules Material Polyamide Nylon PA66 Insulaion Extrusion Granules for Building Material

Overview
Related Products

Product Introduction:

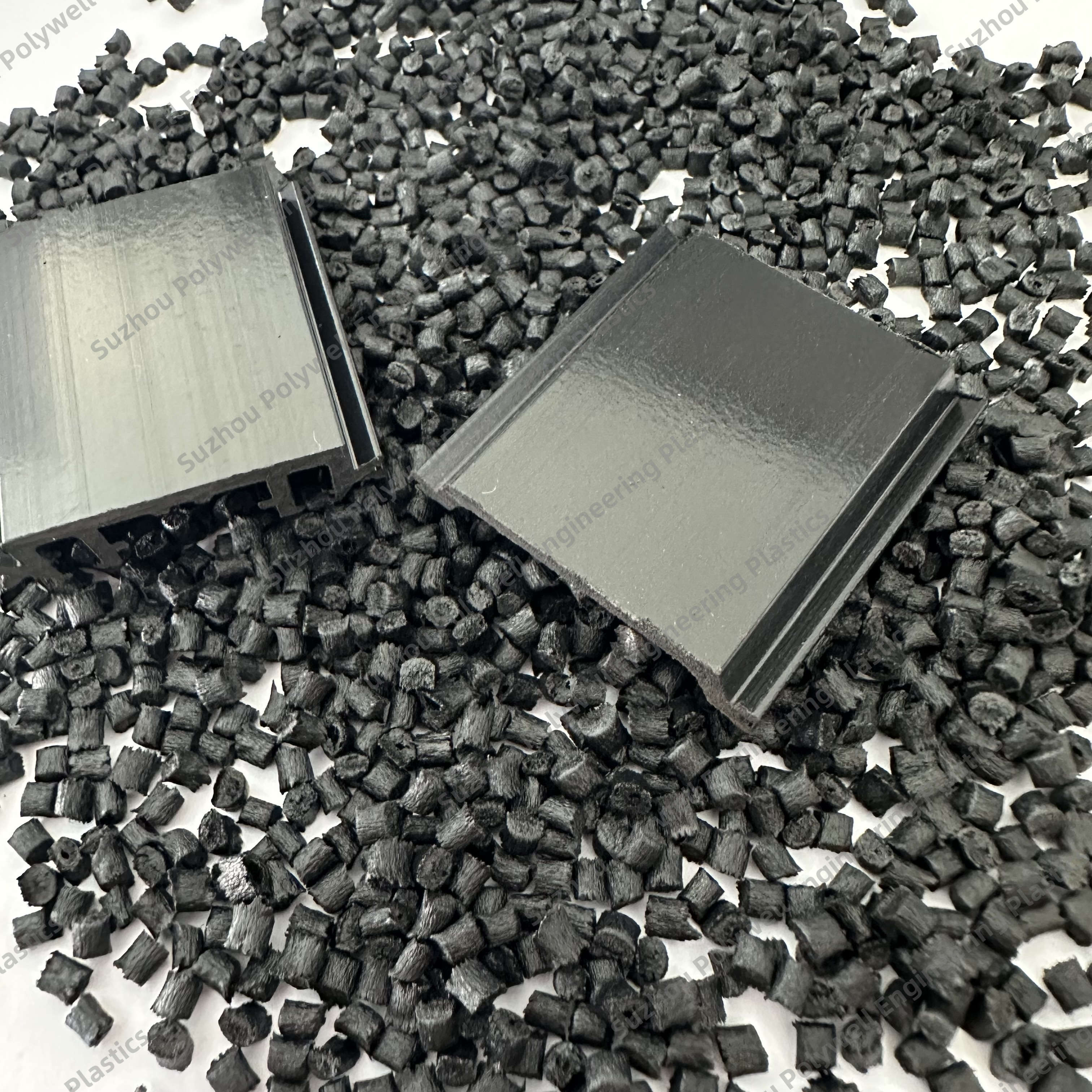

-Nylon/PA66 granules reinforced by fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.


Advantage:

High mechanical strength
High toughness
High softening point
Good wear resistance
Self-lubrication
Long-term work at higher temperatures
It has high CTI value , excellent electrical insulation, low smoke and low toxicity characteristics.

Details of related standard:

GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
JG/T 174-2005 Thermal barrier strips for construction industry
GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
GB/T 8478-2008 Aluminium windows and doors
GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings

Polywell PA66 Granules Performance Table

No.	Item	Unit	GB/T 23615.1-2009	PW-Technical specification
	Material Properties
1	Density	g/cm³	1.3±0.05	1.28-1.35
2	Linear expansion coefficient	K^-1	(2.3-3.5)×10^-5	(2.3-3.5)×10^-5
3	Vicat softening temperature	ºC	≥230ºC	≥233ºC
4	Melting point	ºC	≥240ºC	≥240ºC
5	Testing for tensile cracks	-	No cracks	No cracks
6	Shore hardness	-	80±5	80-85
7	Impact strength (Unnotched)	KJ/m²	≥35	≥38
8	Tensile strength (longitudinal)	MPa	≥80^a	≥82^a
9	Elasticity modulus	MPa	≥4500	≥4550
10	Elongation at break	%	≥2.5	≥2.6
11	Tensile strength (transverse)	MPa	≥70^a	≥70^a
12	High temperature tensile strength (transverse)	MPa	≥45^a	≥47^a
13	Low temperature tensile strength (transverse)	MPa	≥80^a	≥81^a
14	Water resistance tensile strength (transverse)	MPa	≥35^a	≥35^a
15	Aging resistance tensile strength (transverse)	MPa	≥50^a	≥50^a

1.Sample water content less than 0.2% by weight.

2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.


About color:
The color of our products is black, but we also can customize according to customers' requirements.

Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
