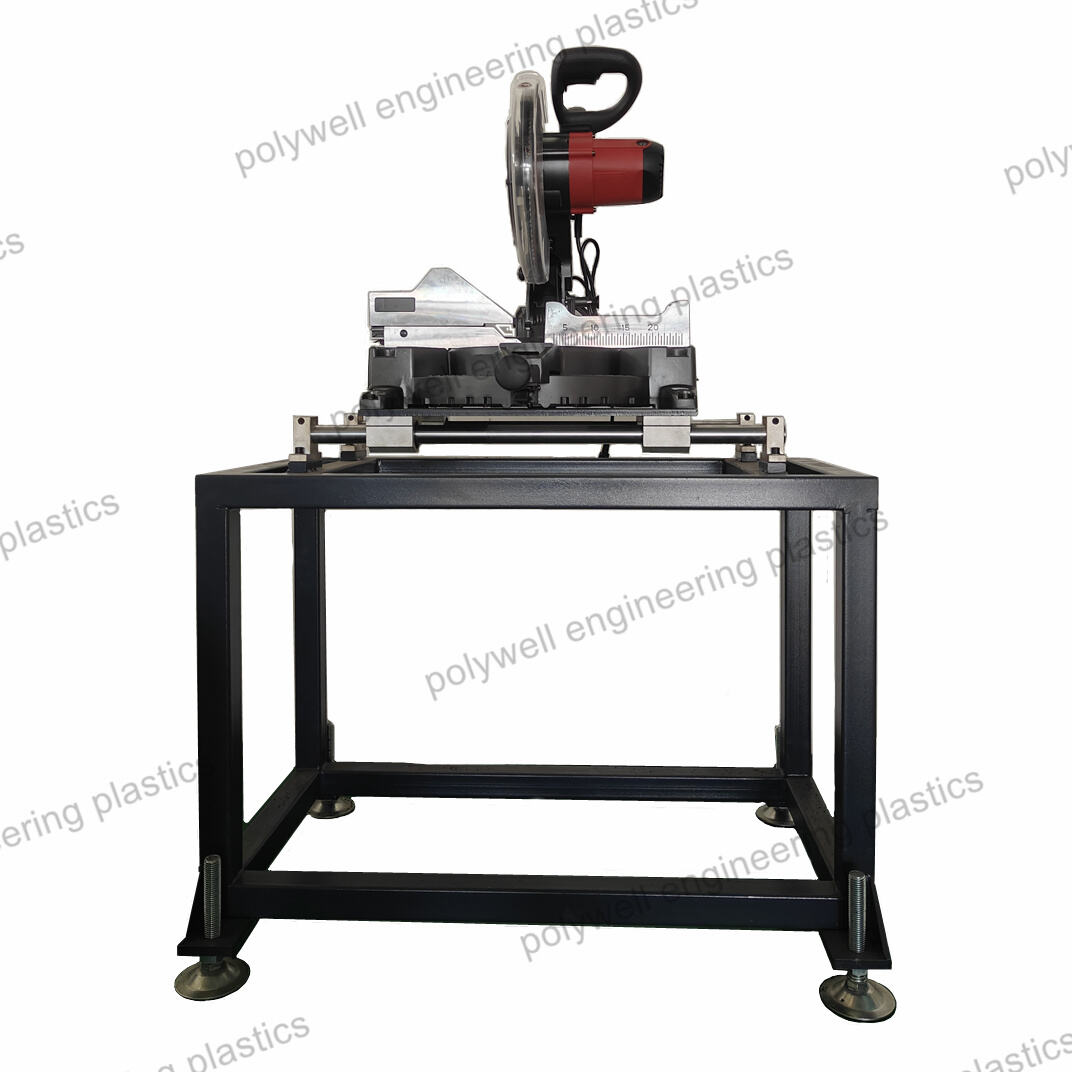

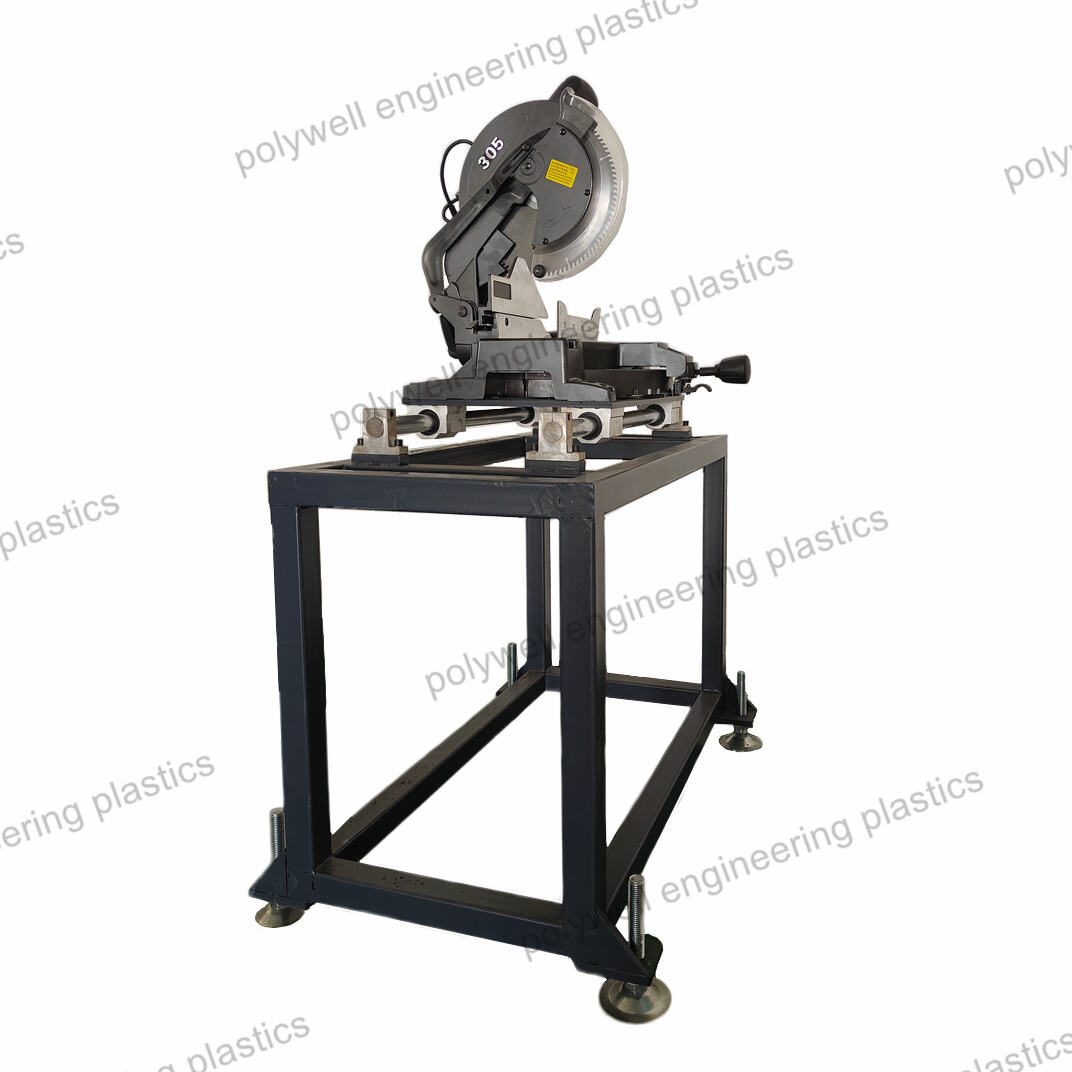

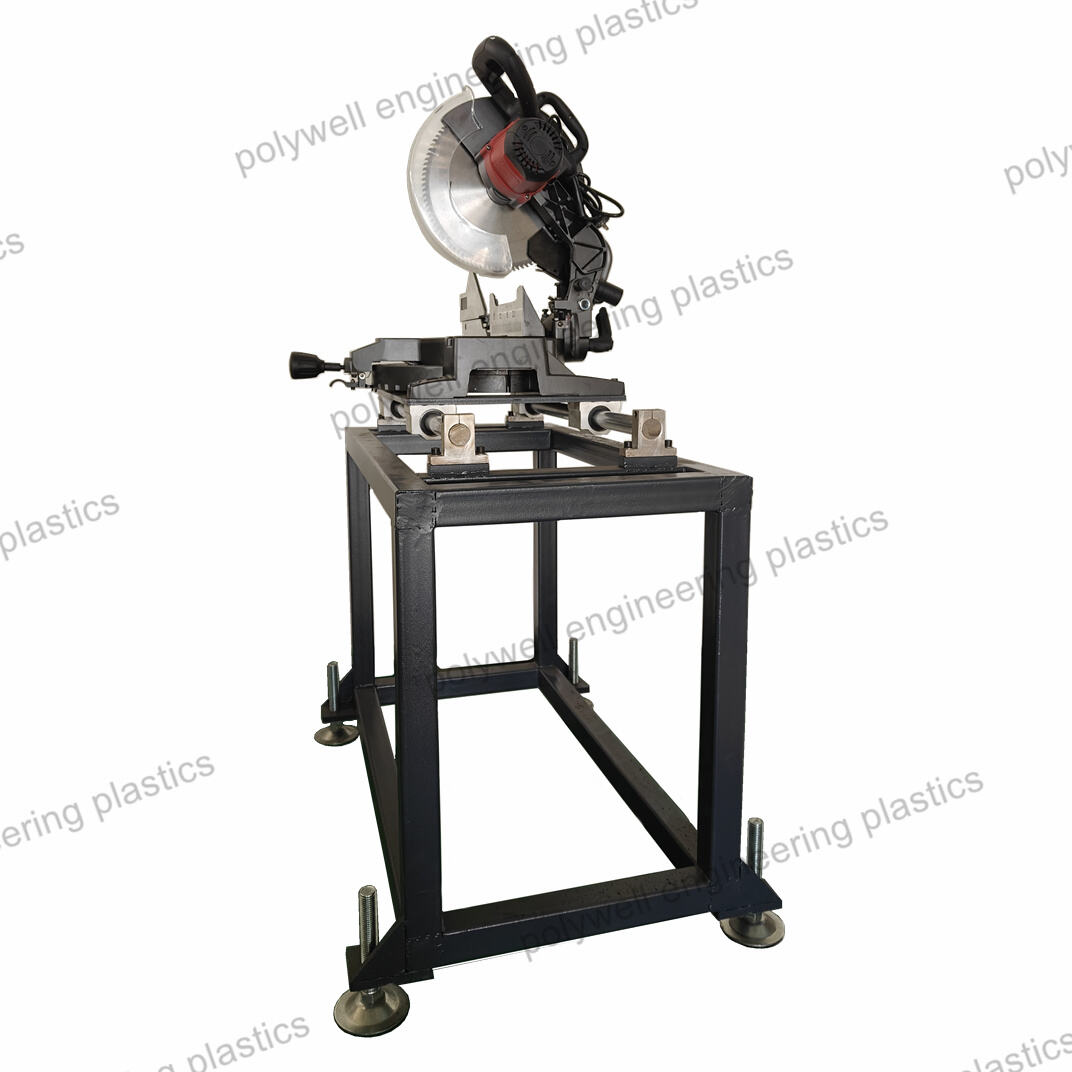

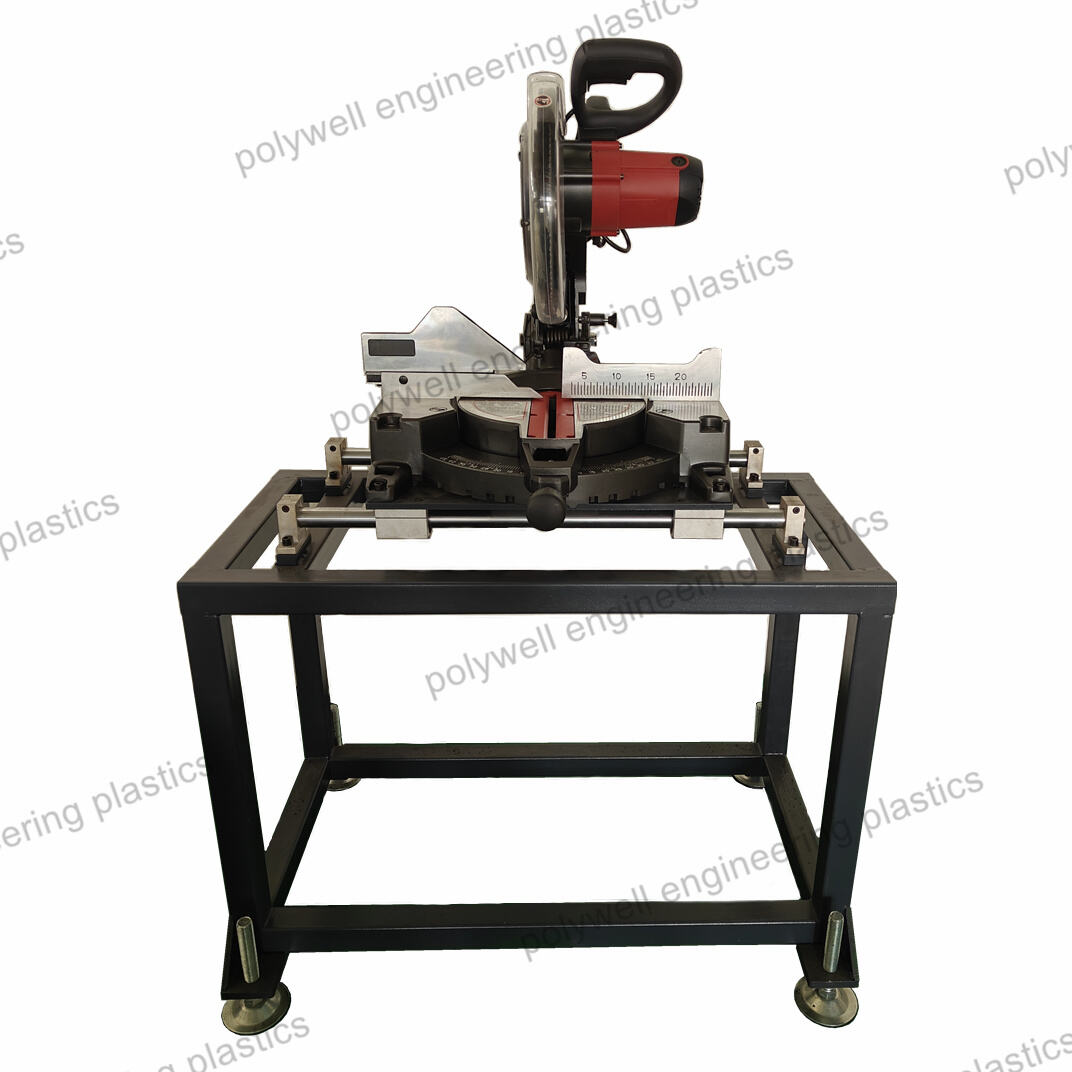

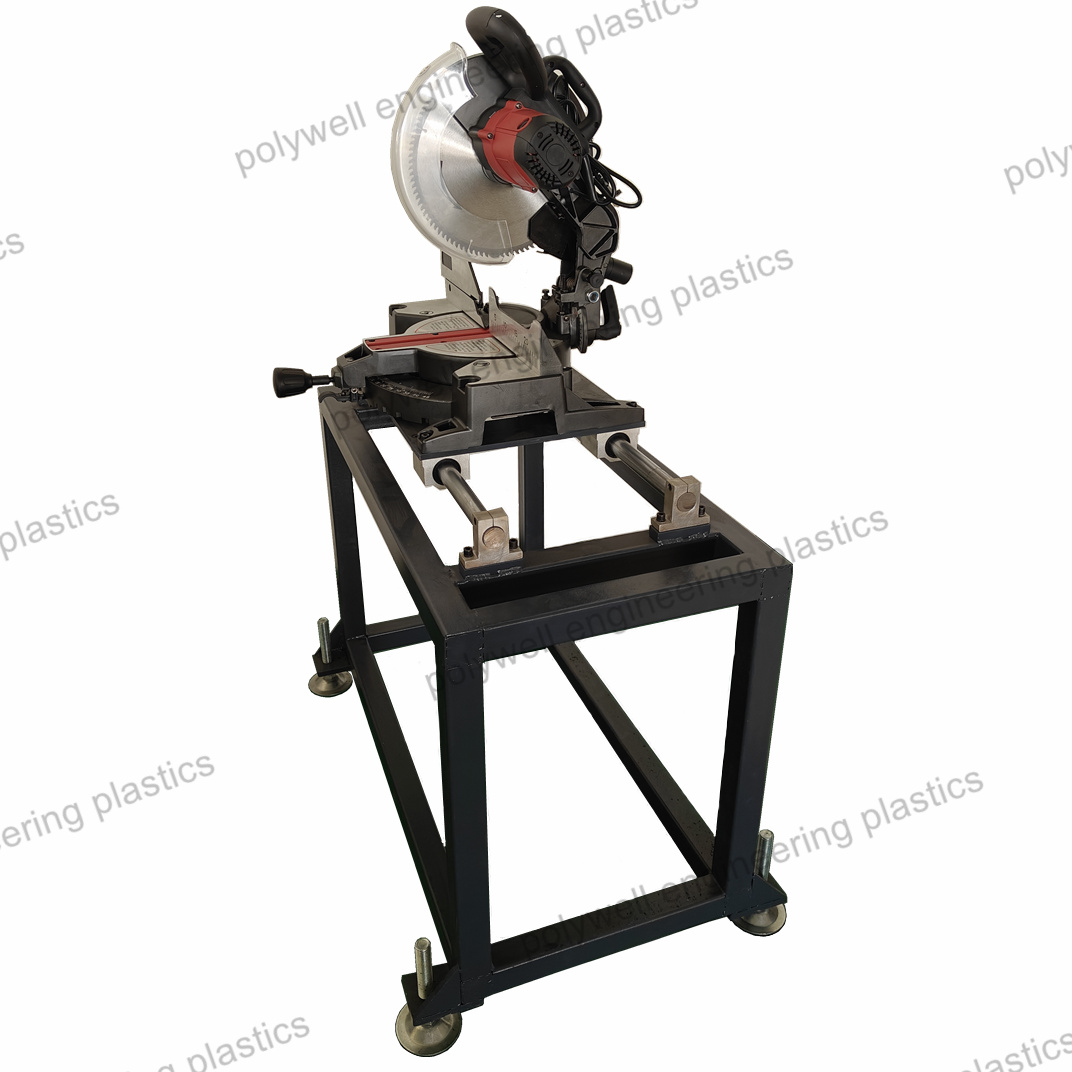

Precision Plastic Cutting Machine For PVC PA Extrusion Profile
Warranty:1 year
Applicable Industries: Manufacturing Plant
Voltage:380V or customized
Main motor power: 3kw*2
Main axle rotary speed: 2800 r/min
Air pressure: 0.5-0.8 Mpa
Maximum sawing width: 300mm
Maximum sawing height: 150mm
Saw blade: 500mm
Cutting angle: 90°
- Overview
- Related Products
Products Details
1. The machine is used for cutting profiles such as thermal break profiles, aluminum profile, UPVC window frames and curtain wall, and it has two heads with cutting angle 90°.
2. The location of the right head is adjustable. So that you can change and controll the cutting length.
3. The machine is controlled by PLC program.
4. High-precision spindle motor for stable saw blade rotation.
5. Protecting guards make sure your convenience and safety.
6. The high precision spindle makes the saw blade rotate stably and effectively improve the cutting surface quality of the product.
Model |
600# |
Voltage |
380V |
Control way |
PLC |
Saw cutting angle |
90° |
Power of cutting motor |
3 kw * 2 |
Power of moving motor |
750 w |
Horizontal movement way |
pneumatic |
Length of worktable |
6m or customized |
Material of worktable |
stainless steel |
Width of worktable |
600 mm |
Air pressure |
0.5~0.8 MPa |
Our Service:
Pre-Sale Service
Please contact us to find the right machine for your requirements.
Enjoy our professional solution to each customer's specific needs, free of charge.
After-Sales Service
Get professional technical support via email or WhatsApp whenever you need it; we are here for you.
Gain from a one-year warranty for peace of mind and reliable operation.
Our engineer is willing to travel globally to assist with installation, maintenance, and staff training, ensuring smooth operation and efficiency.
Package Way:
We will provide different packaging methods based on different modes of transportation,
For LCL(less container load) shipping, we will provide PE stretch film and plywood case.
For FCL(full container load) shipping , all machines will wrap with foam wrapping film and fixed into the container with strips.
