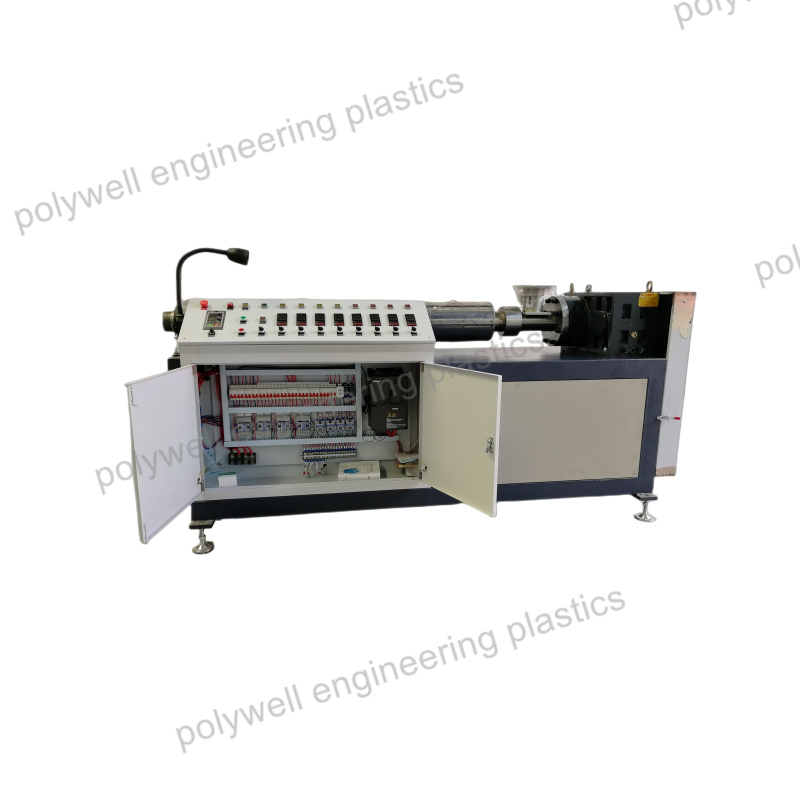

PA66 GF25 Heat Insulation Strip Extrusion Line Thermal Barrier Bar Polyamide Profile Extruding Machine

After-sales Service : Engineers Available to Service Overseas
Warranty : 1 Year
Type : Profile Extruder
Plastic Processed : PA66-gf
Product Type : Profile Extrusion Molding Machine
Product Type : PA profile
Feeding Mode : One Feed
Assembly Structure : Separate Type Extruder
Screw : Single-Screw
Engagement System : Non-Intermeshing
Screw Channel Structure : Deep Screw
Exhaust : Don’t Exhaust
Automation : Automatic
Computerized : Computerized
Transport Package : Plastic Foam Film or Plywood Case
Specification : 60mm/70mm/80mm
Trademark : Polywell
Origin : Zhangjiagang City, China
Material : Polyamide, Glass fiber
Usage : Produce Polyamide Strips
Plastic Properties After Heated : Thermoplastic Plastics
Plastic Forming Method : Extrusion
Application : Thermal Break Aluminum Profiles Production
Power : 15-20 kw
Weight: 900-1000 kgs
Speed: Around 8-14 cm per min
Suitable Strip Shape: All Kinds of Shape
HS code: 847720
Production Capacity: 40-50 sets per month
Customized : Customized

Polyamide Thermal Strip Processing Process

PA66GF25 granules are dried and get into the machine barrel through the hopper. The granules are in rotary contact with the machine screw, and move towards the mold with the rotation of the screw.

In conclusion, plastic extruder for polyamide strips, or thermal break strip production machines, are indispensable assets for any manufacturing facility. Their ability to produce high-quality strips efficiently makes them a valuable investment for businesses aiming to enhance their production capabilities.

What is the raw material of PA plastic profile extrusion machine?

Polyamide6.6 granules reinforced by 25% glass fiber.

What is polyamide thermal break profiles?

Polyamide is used for over 30-50 years to create strips that serve as thermal breaks. This is because of the low thermal conductivity that polyamide boasts of. Such a property helps polyamide reduce the transfer of heat and cold through the curtain walls. The polyamide strips can also be coated with powder or anodized. All of these would further ensure that the curtainwalls are fit even to counter the harsh weather, which includes fierce cyclones, damaging UV rays, regular corrosion, and more.

What is the function of plastic extruder?

Plastics extrusion is a high-volume manufacturing process in which raw plastic is melted and formed into a continuous profile. Extrusion produces items such as pipe/tubing, weatherstripping, fencing, deck railings, window frames, plastic films and sheeting, thermoplastic coatings, and wire insulation.

The extrusion produces items of our plastic extruder is thermal break polyamide strips.

What plastics can be extruded?

There are more than 20 different types of thermoplastics that can be extruded. Some of the more common ones include polyethylene, polypropylene, polystyrene, polycarbonate, PVC and ABS, all of which can be easily heated and then pressured in a mould to form different plastic profiles, tubes and sections.

But we mainly sell PA6.6 gf25 heat insulation profile extrusion machine.

Machine Characteristic:

1. The barrel is heated by stainless steel heater, withstand voltage 400V.

2. The professional dryer makes raw material convection with hot air uniformly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

3. Special new screw make sure the machine has low energy consumption, good plasticizing ability and stable extrusion flow.

4. The extruder uses high-quality carbide twin-screws to ensure high plasticization of PA66GF25 granules.

5. One temperature control zone controlled by one table, and the temperature accuracy can be controlled at ±1℃.

FAQ

Q: What is your MOQ for the polyamide strip extrusion machine?

A: 1 set.

Q: As new player of polyamide strips extrusion, how we learn to use the machine?

A: Polywell will provide paper and videos files to help customer operate the machine. If customer needs, we can also provide on site training service.

Q: Can we customize and buy the raw materials and molds?

A: We can provide every product related to the polyamide thermal break profiles production. Including the raw material, the mold, the cutting machine, the worktable, the winder and so on.

Q: What is the warranty for your machine?

A: For extruder machine, it is one year. We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.

Q: What is your payment terms?

A: 50% T/T deposit before production, 50% T/T balance before loading.

Our Service

One to one consulting service.

Experienced senior engineer to discuss technical data, designed drawing.

Perfect arrangement of sea or air transport.

Overseas aftersales service.

Professional engineers team.

Welcomed to visit the factory at any time.

Choosing Polywell means choosing the certainty of a reliable partner, able to team up and offer daily support. We are where you need us, whenever you need us.

PA66GF25 Polyamide Profiles Extrusion Machine Including:
