Nylon Insulation Forming Extruder Equipment Polyamide Thermal Break Strip Production Line
Machine Extrude Chain Guide Nylon Runway Guide Rail Guide
- Overview
- Recommended Products
What is the raw material of PA plastic profile extrusion machine?
Polyamide6.6 granules reinforced by 25% glass fiber.
What is the function of the PA plastic profile extrusion machine?
To produce polyamide thermal break profiles. Polyamide thermal break strips also know as heat insulation profiles.
Processing principle:
Nylon material → drying → heating and melting → extrusion → shaping → finished product
Introduction:
PA profiles extruding machine is for the production of polyamide thermal break profiles, which are used in aluminum windows and doors.
Many customers use thermal break aluminum profiles to do windows and doors to keep the heat from being affected by cold air, then make use of energy saving.

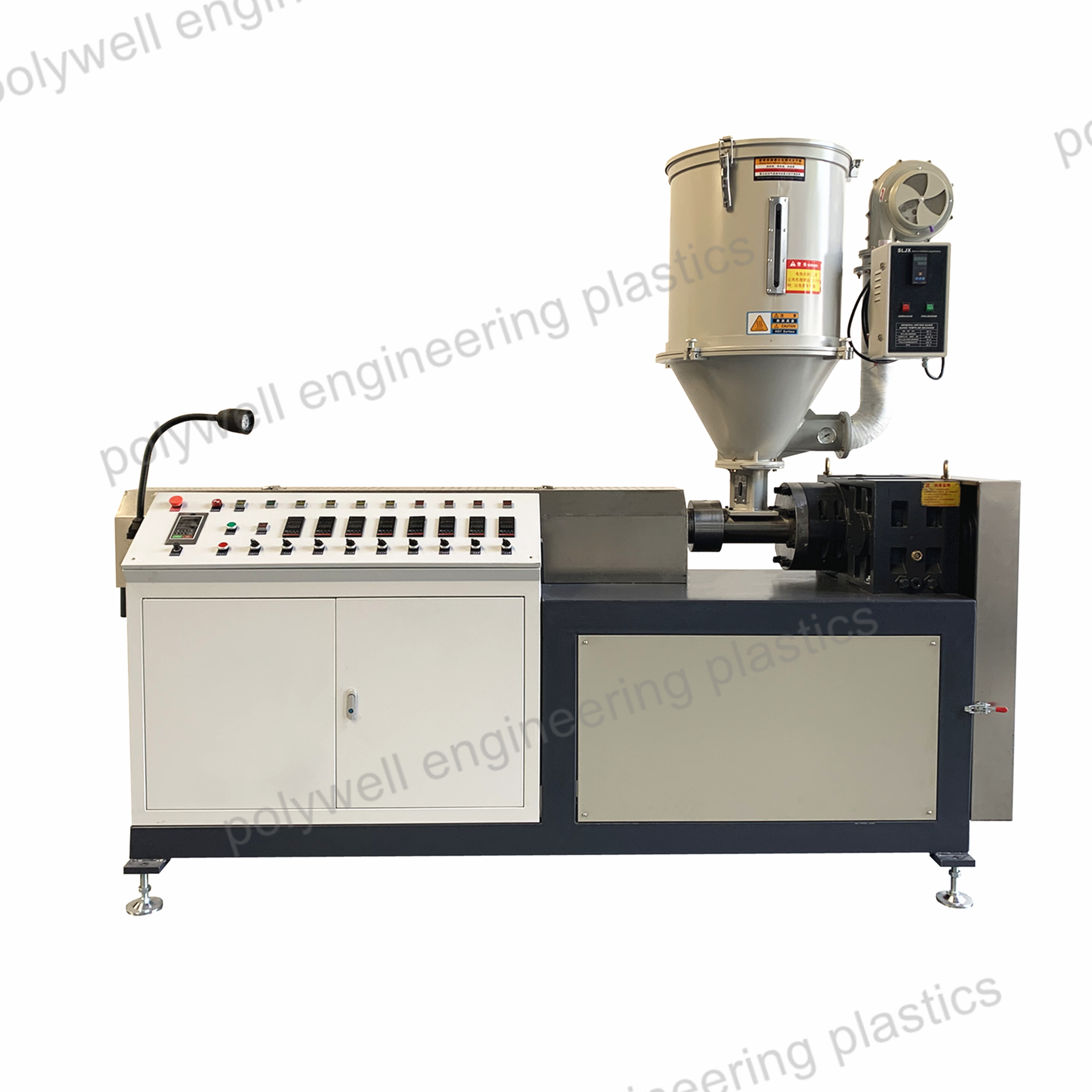

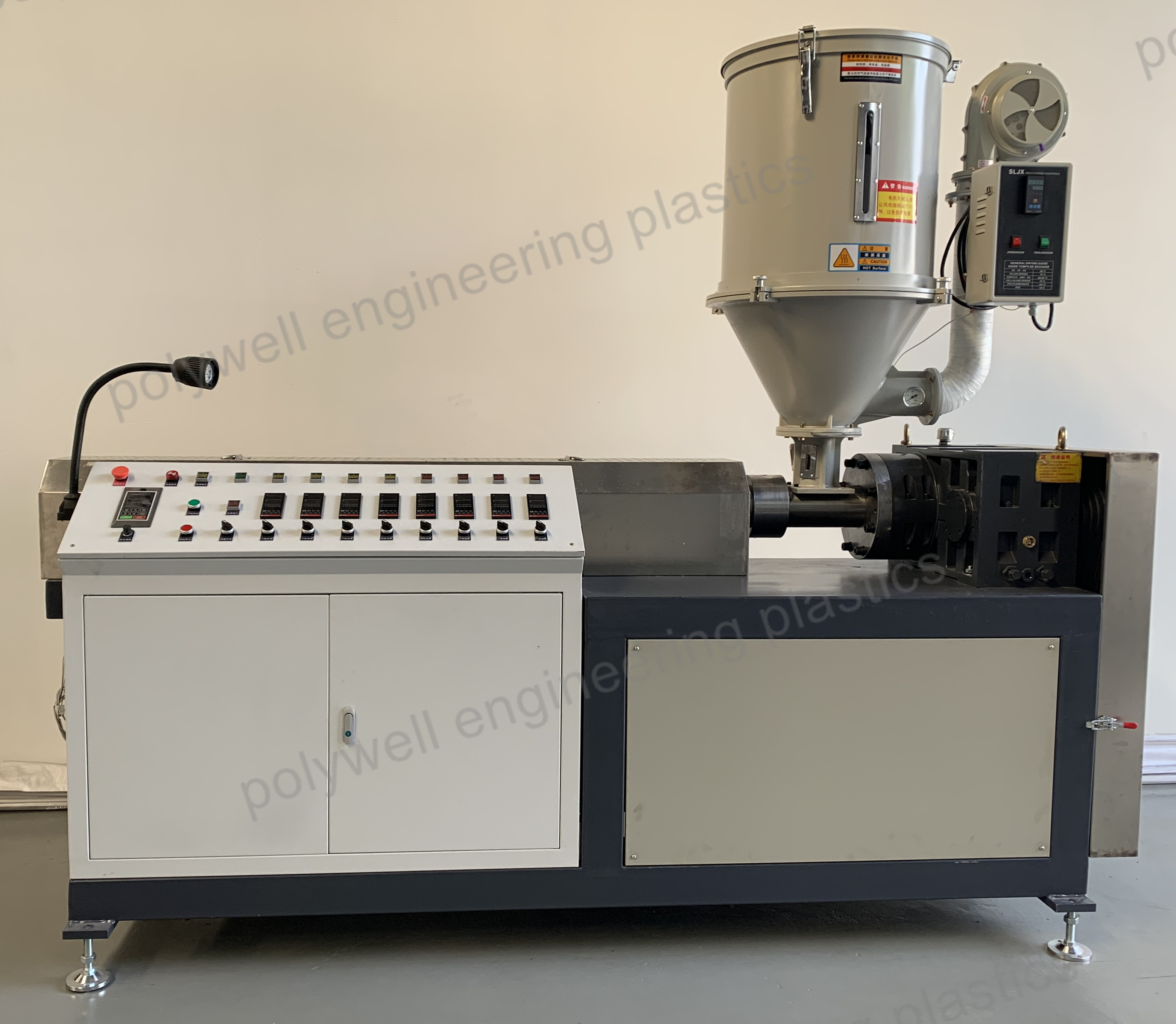

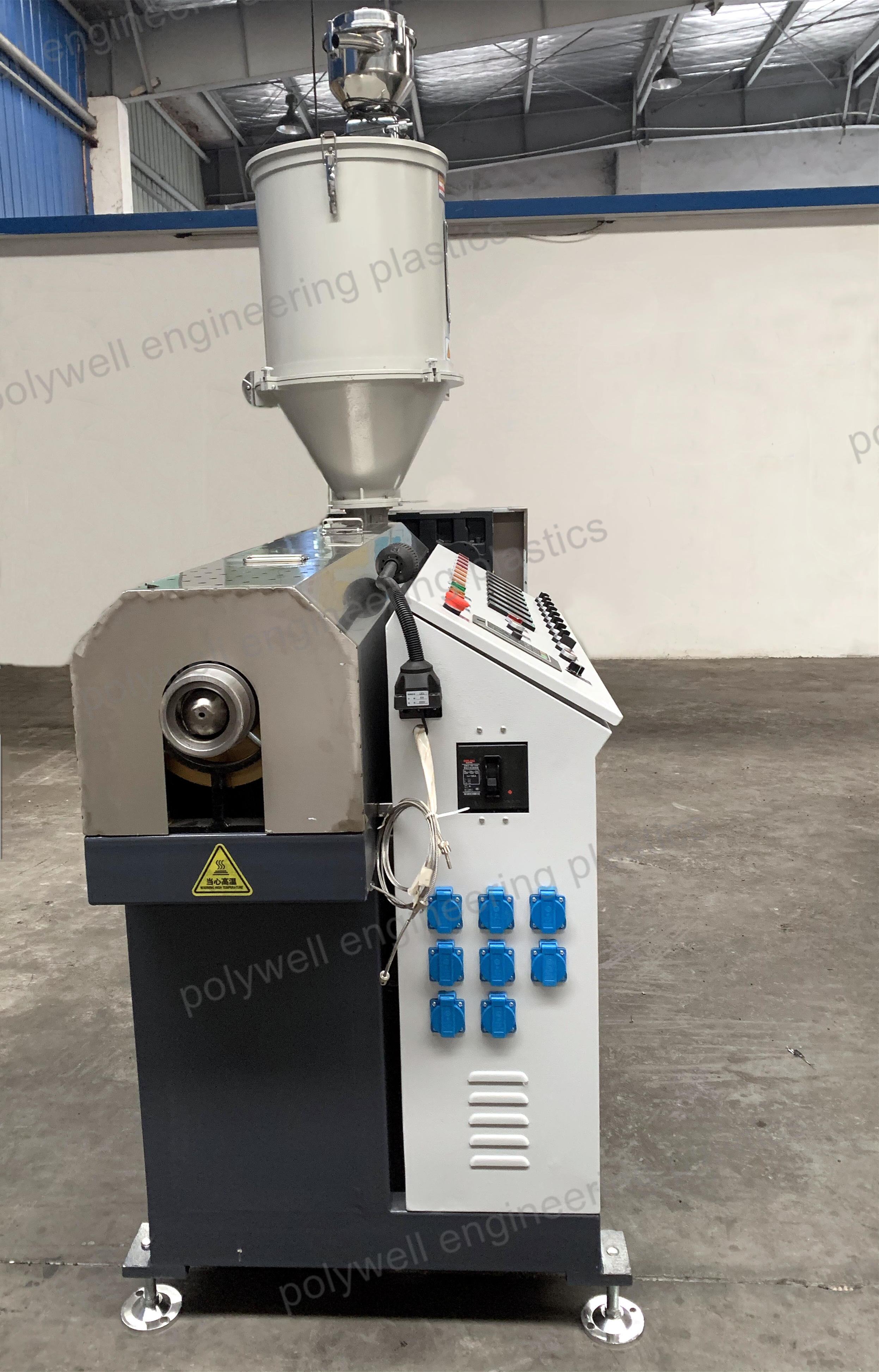

We provide high-quality PA profiles extruding machines along with various molds and raw material PA66GF25 granules, and also the subsequent technical assistance. This machine includes a raw material auto-feeding machine, hopper dryer, main engine, frequency converter, and gearbox.
Parameters of Single Screw Extrusion Extruder
| Model | Capacity | Screw diameter | Power | Voltage | Loading of Dryer |
| PW-60 | 18-25kg/h | 60mm | 8kw | 380V | 75kg |
| PW-70 | 20-35kg/h | 70mm | 16kw | 380V | 100kg |
| PW-80 | 20-60kg/h | 80mm | 25kw | 380V | 150kg |
| Material | PA66GF25 material |
| Production Speed | 8-14 cm/min |
| Max Output | 60-80 kg/h |
| Power | 380V, 50Hz or customized |
| Cooling Water | RO water or Tap water |
What are the advantages of plastic extrusion?
The extrusion process is fast and efficient at producing continuous shapes in varying lengths. Products can be produced in large volumes, and there is minimal wastage. Complex shapes can be produced with varying thickness, textures, colors etc.
Application of polyamide strip:
1. Used for thermal break aluminum windows, doors, and curtain walls.
2. Many customers use thermal break aluminum profiles to do big air conditioner to keep the heat of cold air, then make use of energy saving.
Our advantage:
We can supply the whole produce line, including raw material, the extruding machine, the extruding tool, the cutting machine and some other equipments you may need for the polyamide profile production line.
Our Service
Before sales
1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
During manufacturing
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
After Sales
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
Our Factory
FAQ
Q: What is your MOQ for the polyamide strip extrusion machine?
A: 1 set.
Q: As new player of polyamide strips extrusion, how we learn to use the machine?
A: Polywell will provide paper and video files to help customers operate the machine. If the customer needs it, we can also provide on-site training service.
Q: Can we customize and buy the raw materials and molds?
A: We can provide every product related to the polyamide thermal break profiles production. Including the raw material, the mold, the cutting machine, the worktable, the winder, and so on.
Q: What is the warranty for your machine?
A: For extruder machine, it is one year. We are confident in our products and pack them well before delivery, so usually you will receive your order in good condition. For any quality issue, we will deal with it immediately.
Q: What are your payment terms?
A: 50% T/T deposit before production, 50% T/T balance before loading.
Q: Do you provide complete production lines or just the extruder?
A: We offer turnkey solutions for complete thermal break extrusion production lines. The standard configuration includes raw materials, a single-screw extruder, an extrusion die, a cooling table, a cutting machine, a workbench, and more. The specific configuration can be flexibly adjusted based on your product specifications and factory layout.
Q: Are extrusion molds included in the quote?
A: Molds are an important component of the production line, but since each customer requires different profile shapes and mold cavity numbers, and mold prices are different. So we provide separate quotes for molds. The cost of molds is not included in the quote for the extruder.
Q: Does the extruder have CE certification?
A: Yes, we have.
