Extrusion Grade PA66 GF25 Plastic Reinforced by Glassfiber Toughened Granules for Nylon Profile

Chain Guide Material, Nylon Rail Guide Material Runway Guide Material

Overview
Recommended Products

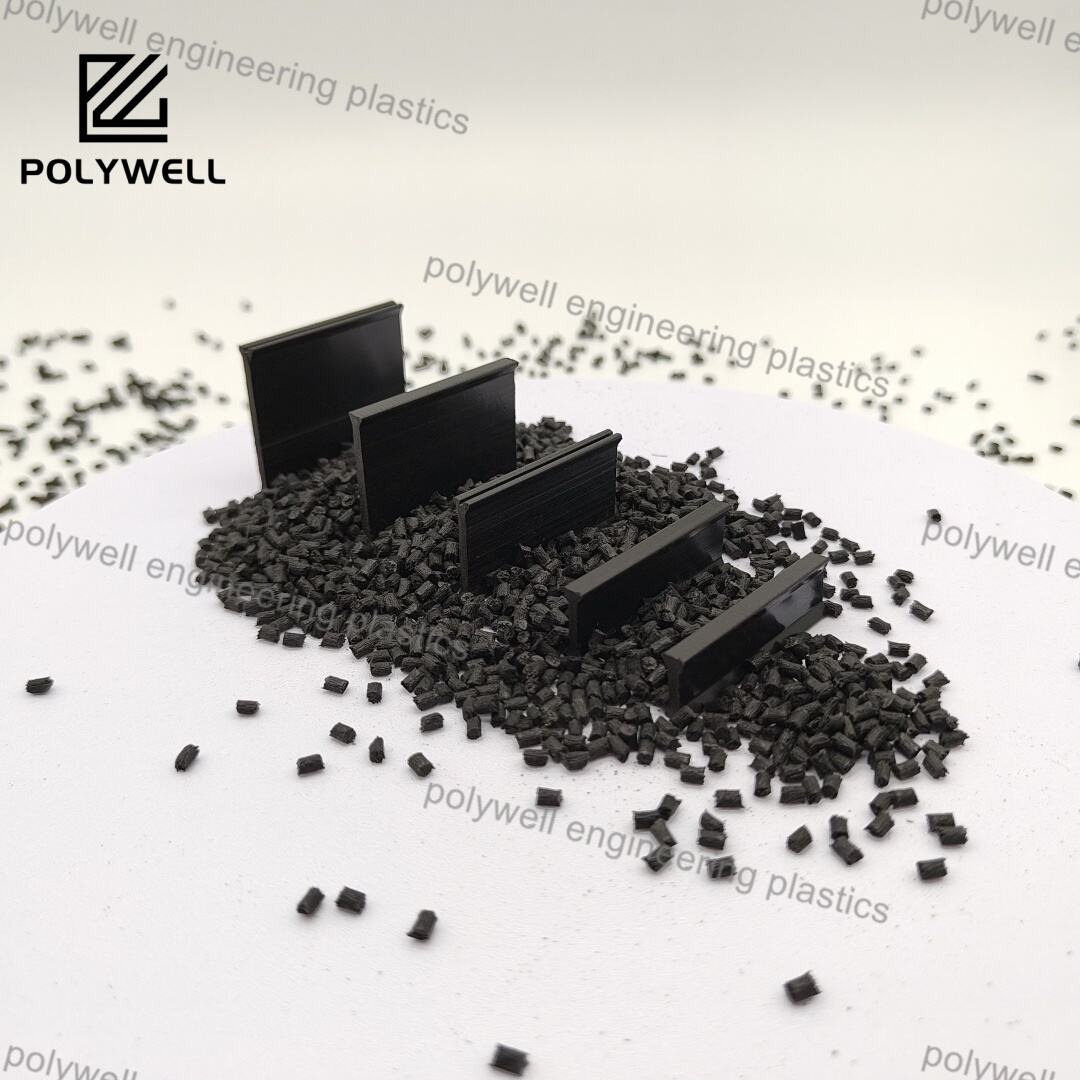

Extrusion Grade PA66 GF25 Plastic Reinforced by Glass Fiber Toughened Granules for Nylon Profile

Product Description:
Polyamide 6.6 granules reinforced by fiberglass, with special additives, are blended and extruded by a twin-screw extrusion machine. It is more suitable for extrusion of heat insulation strips. Compared with ordinary granules, it is more conducive to forming. It has certain advantages in speed, surface finish, and yield. The performances of nylon insulating strips produced made of this material meet the national standards. It can not only be customized according to customer requirements, far exceeding the national standard, but also can add high-efficiency flame retardant to achieve the purpose of flame retardancy.

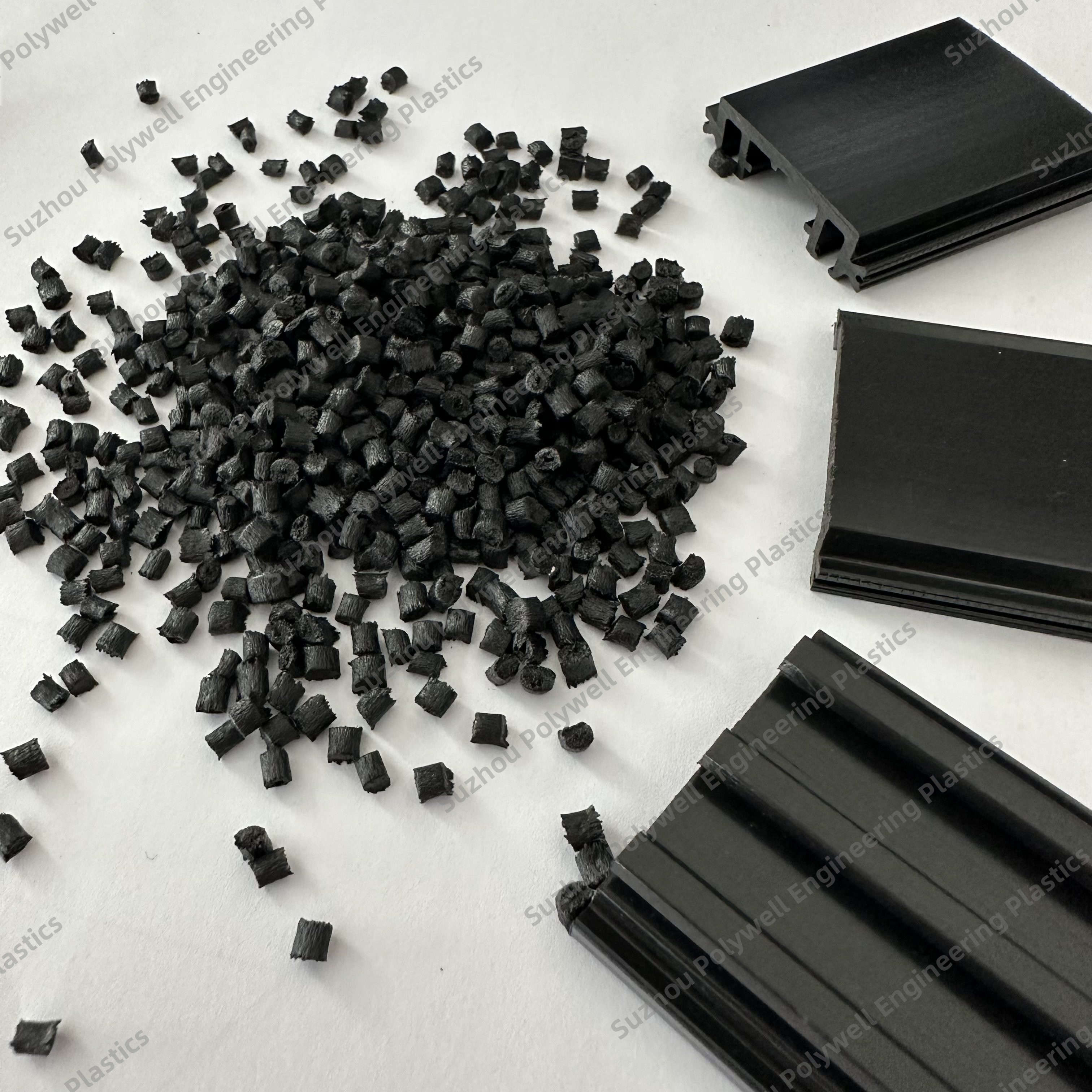

Introduction of Our PA66GF25 Granules:
Our PA66GF25 granules are a special material for heat insulation profiles. It's extrusion-grade modified plastic. It is different from PA66 resin.
Our PA66GF25 granules are reinforced by 25% glass fiber.

PA66 Features
1. It has excellent mechanical properties, high strength, and high toughness.
2. The material has excellent coloring ability and can achieve various requirements of color matching.
3. The shrinkage rate of PA66 is between 1% and 2%. The addition of glass fiber additives can reduce the shrinkage rate to 0.2%~1%. The shrinkage ratio is large in the flow direction and in the direction perpendicular to the flow direction.
4. PA66 is resistant to many solvents but is less resistant to acids and other chlorinating agents.
5. PA66 has excellent flame-retardant performance; by adding different flame retardants, different levels of flame-retardant effect can be achieved.

Why use polyamide to produce thermal break profiles?
Polyamides offer high levels of heat resistance, stiffness, and high mechanical stability for a durable solution. Our special glass fiber-reinforced PA 66 GF25, dry impact-resistant mixture is ideal for the production of structural and reinforcement profiles.
Offering excellent heat resistance, polyamides can be used in the toughest of conditions, for example, exposure to hot and humid environments. PA profiles can drastically reduce the Utj (U-value of a thermal joint), which insulates the energy flow from the outside of the facade to the inside.
The uncomplicated processing of polyamides is another key benefit. With various properties that can be individually adapted according to the specific project and need, polyamides are the perfect choice for the manufacture of special extrusion profiles.

Advantages of our PA6.6-GF25 granules:
Our company has devoted more than ten years to the research and development and production of nylon extruding profiles. According to customer reaction, using our PA66 granules for production can get high yield, easy start-up, and less scrap in the early start-up stage. There will be no lack or incompleteness of profiles in the production process, thus avoiding material waste, saving customer costs, and improving production efficiency.

About color:
The color of our PA66GF25 granules is black, but we also can customize according to customers’ requirements.

Application:

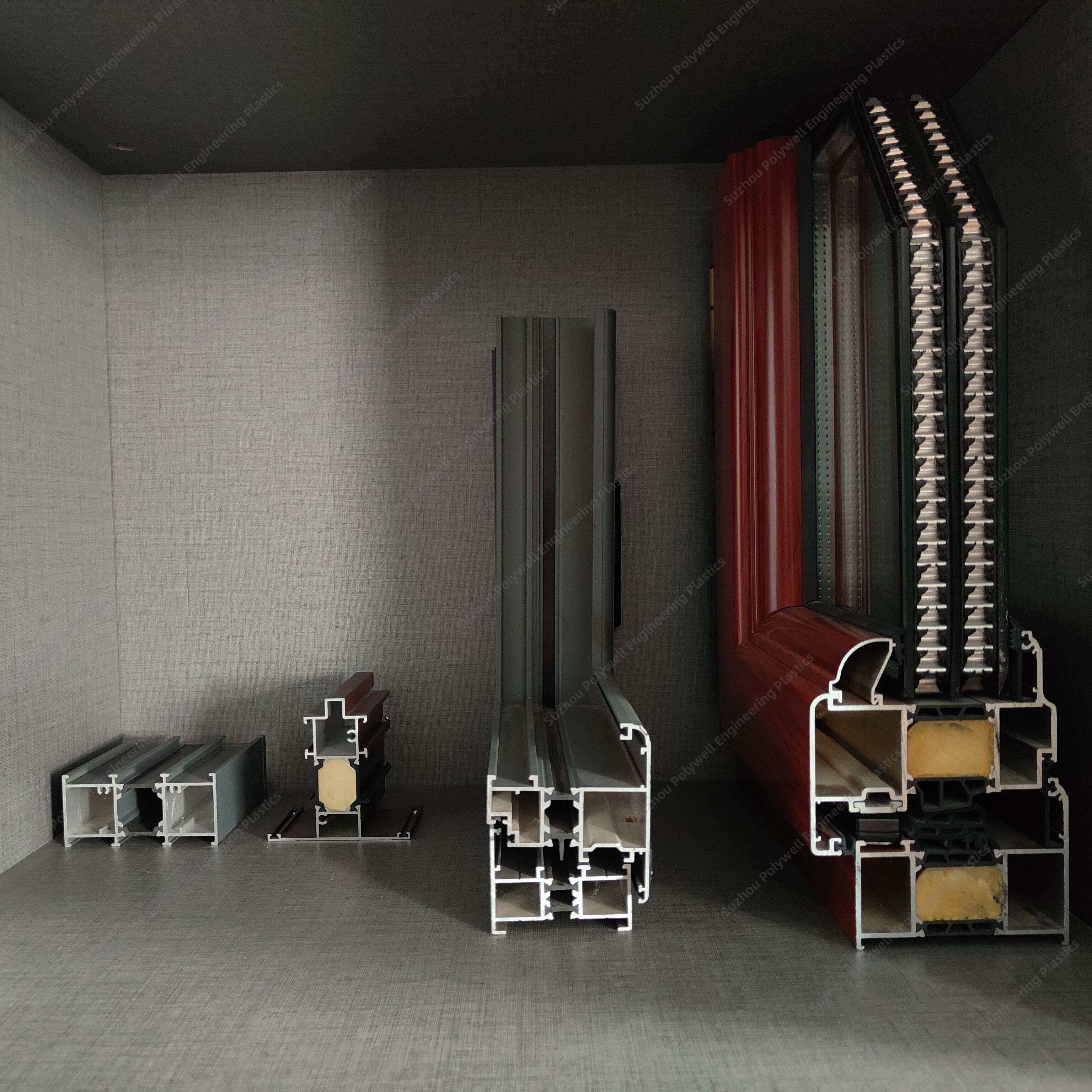

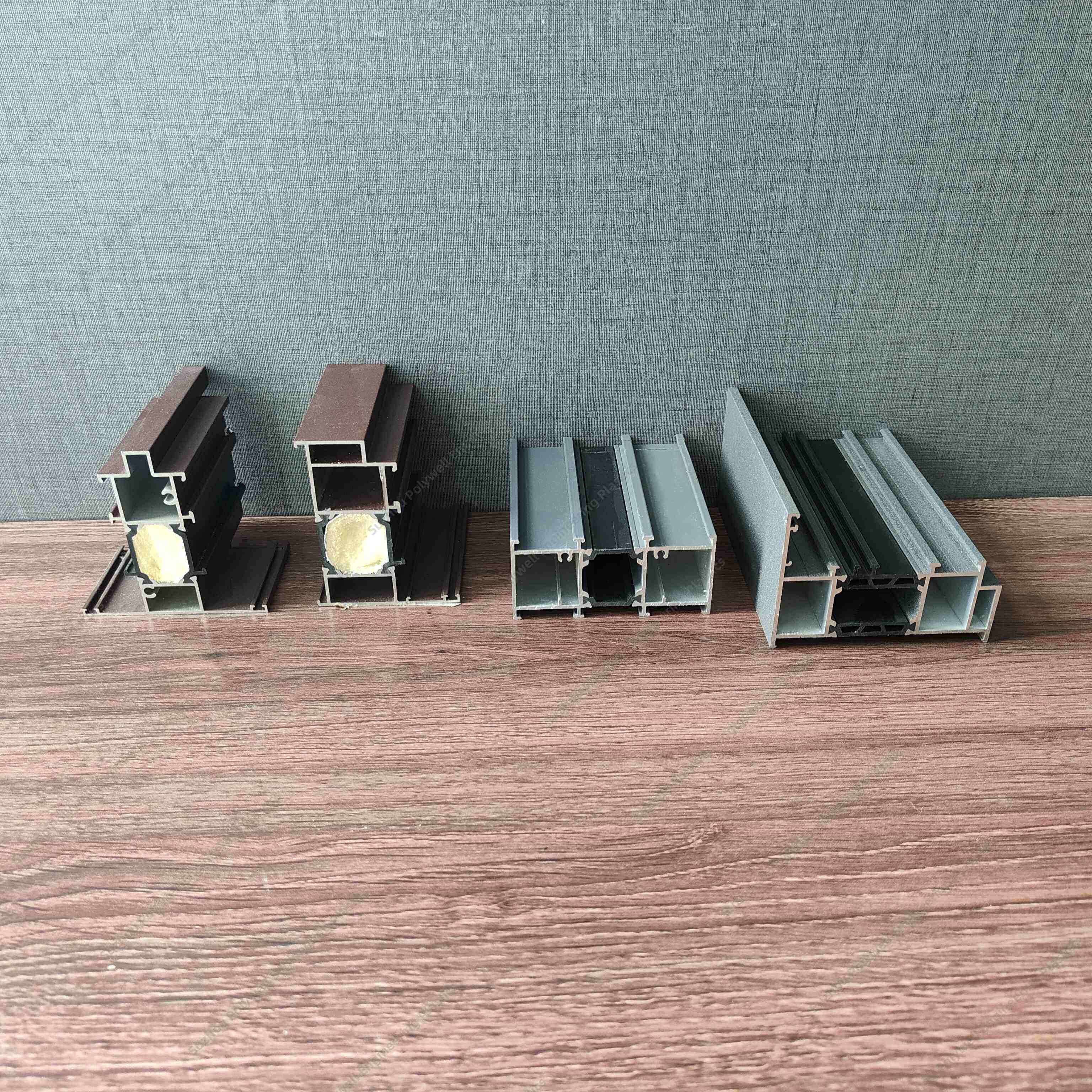

Specially used in thermal break strips, thermal bridges, heat insulation bars, etc.

Package and Delivery:

Packaging details

25 kg/bag

Lead time

7-15 working days

Delivery details

10-16 tons per 20-foot container

20-25 tons per 40-foot container

Product Performance

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.28-1.35
Linear expansion coefficient	K-1	(2.3-3.5)×10^-5	(2.3-3.5)×10^-5
Vicat softening temperature	ºC	≥230	≥233
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	77-85
Impact strength(Unnotched)	KJ/m2	≥35	≥38
Tensile strength(longitudinal)	MPa	≥80^a	≥82^a
Elasticity modulus	MPa	≥4500	≥4550
Elongation at break	%	≥2.5	≥2.6
Tensile strength(transverse)	MPa	≥70^a	≥70^a
High temperature tensile strength (transverse)	MPa	≥45^a	≥47^a
Low temperature tensile strength (transverse)	MPa	≥80^a	≥81^a
Water resistance tensile strength (transverse)	MPa	≥35^a	≥35^a
Aging resistance tensile strength (transverse)	MPa	≥50^a	≥50^a

Sample water content less than 0.2% by weight.
Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.


FAQ:

Q: About Sample
A: The sample is free, but the express fee is collected. Customers can also choose their own cooperated courier company.

Q: About MOQ
A: For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.

Q: About Customizing Special Shape Of Polyamide Profiles And Its Period
A: You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make a new mold for you, and the customer needs to pay for the mold.

Q: About Customizing Package Style and Marks
A: You can customize the package style and marks.

Q: Why is your price higher/lower than others?
A: For years specializing in polyamide granules and thermal break strips has bestowed upon us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance.

Q: About warranty
A: 1 year. We are confident in our products and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.

Q: About Payment or Other Questions
A: 50% T/T deposit before production, 50% T/T balance before loading.
