Tsis Siv Neeg Hluav Taws Xob-Txuag Profile Extruding Kab PA66 Thermal So Strip Sib Sau Tshuab Nylon Sawb Extrusion Ntau Lawm Kab

Kev Pabcuam Tomqab Muag: Cov Kws Ua Haujlwm Muaj Kev Pabcuam Txawv Tebchaws
Warranty: 1 Xyoo
Hom: Profile Extruder
Cov txheej txheem yas: PA66-gf
Yam khoom: Profile Extrusion Moulding Tshuab
Yam khoom: PA profile
Pub hom: Ib Pub
Cov qauv sib dhos: cais hom Extruder
Ntsia Hlau: Ib-Screw
Kev sib koom ua ke: Tsis-Intermeshing
Screw Channel Structure: Deep Screw
Exhaust: Tsis txhob Exhaust
Automation: Tsis siv neeg
Computerized: Khoos phis tawj
Thauj Pob: Yas Ua Npuas Ncauj Zaj Duab Xis lossis Plywood Case
Specification: 60mm / 70mm / 80mm
Trademark: Polywell
Keeb kwm: Zhangjiagang City, Suav teb
Khoom siv: Polyamide, iav fiber
Kev Siv: Ua Polyamide Strips
Cov Khoom Siv Yas Tom Qab Kub: Thermoplastic Plastics
Plastic txoj kev: Extrusion
Daim Ntawv Thov: Thermal Break Aluminium Profiles Ntau Lawm
Lub Zog: 15-20kw
Qhov hnyav: 900-1000 kgs
Ceev: Nyob ib ncig ntawm 8-14 cm ib min
Tsim nyog Sawb Shape: Txhua Hom Zoo
HS code: 847720
Muaj Peev Xwm Ntau Lawm: 40-50 teeb ib hlis
Customized: Customized

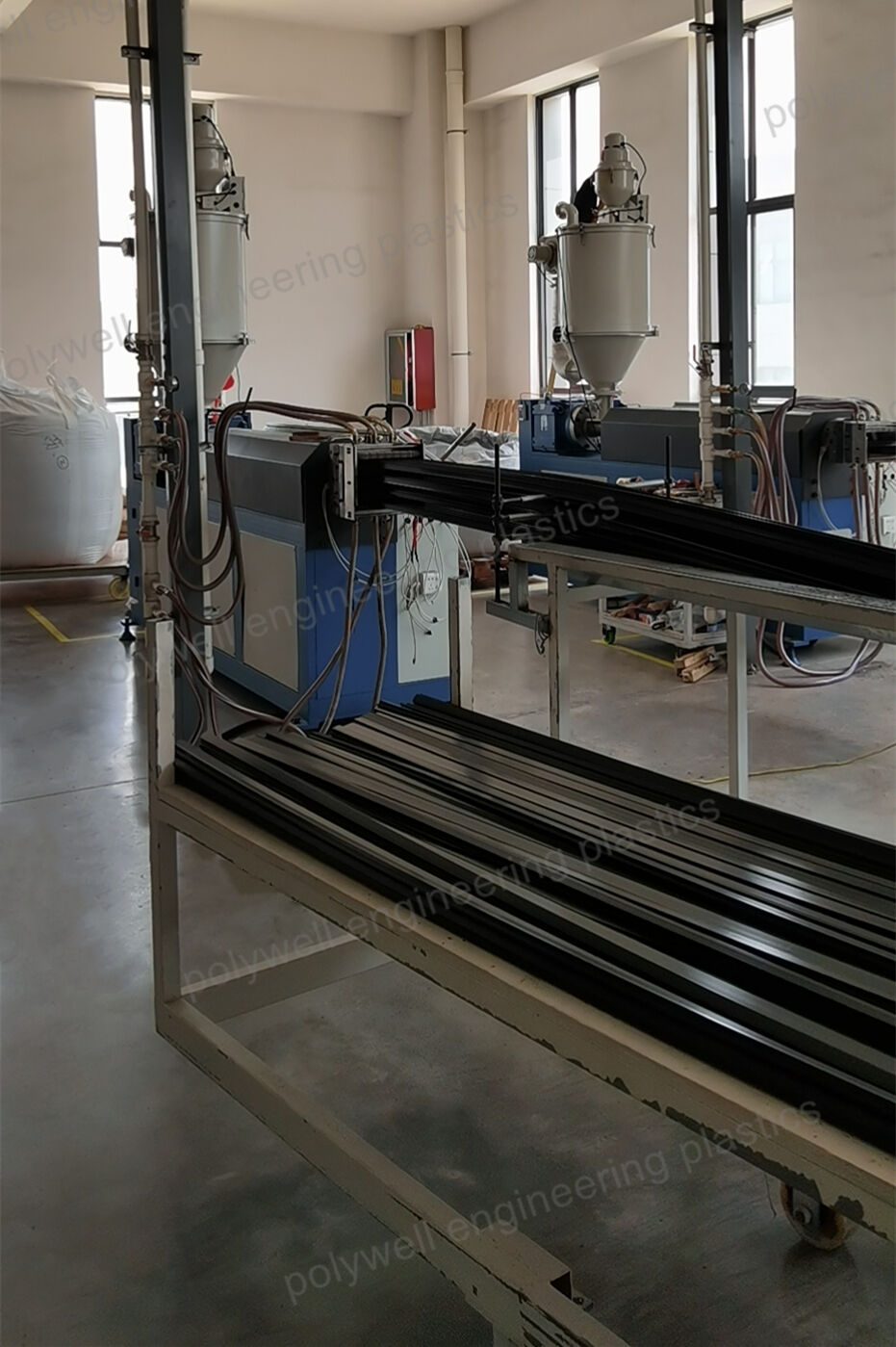

Polyamide Thermal Strip Processing Txheej txheem

PA66GF25 granules yog qhuav thiab nkag mus rau hauv lub tshuab chim los ntawm lub hopper. Cov granules nyob rau hauv kev sib cuag nrog lub tshuab ntsia hlau, thiab txav mus rau lub pwm nrog kev sib hloov ntawm cov ntsia hlau.

Raws li qhov sib txawv ntawm lub tshuab ntsia hlau thiab lub thoob yog me me, cov granules yog rhuab nyob rau hauv qhov sib txawv nyob rau hauv tus txheej txheem ntawm mus rau pem hauv ntej. Lawv yog plasticizied rau nylon molten xeev los ntawm qhov kub siab ntawm hluav taws xob cua sov nplhaib lub cev. Lub xeev molten ntawm nylon yog hloov mus thiab zoo li tus tom qab nkag mus rau hauv pwm, thiab thaum kawg extruded rau hauv tshav kub rwb thaiv tsev strips.

Lub ntsiab lus tseem ceeb rau qhov tseem ceeb ntawm no yog kev siv ntau yam thiab kev ua haujlwm ntawm cov tshuab yas extrusion. Cov cav tov no yog tsim los tswj cov txheej txheem extrusion nrog precision thiab sib xws, kom ntseeg tau tias cov khoom zoo li qub thiab ruaj khov polyamide strips. Nrog lawv cov thev naus laus zis siab thiab kev ua tau zoo, lawv ua kom cov tuam txhab ua kom tau raws li qhov xav tau ntawm thermal so strips hauv kev tsim kho, tsheb, thiab lwm yam lag luam.

Plastic extruder ua dab tsi?

Plastics extrusion yog ib txwm ntim ntim ntau lawm txheej txheem uas cov khoom siv polymer, enriched nrog rau qhov xav tau additives, yog melted thiab tsim nyob rau hauv ib tug tas mus li txheej txheem. Cov khoom siv raw (polymer) nyob rau hauv daim ntawv ntawm granulates, yog nqus mus rau hauv lub hopper thiab los ntawm lub caj pas pub, tee rau ntawm ib tug rotating ntsia hlau.

Cov khoom siv raw ntawm PA yas profile extrusion tshuab yog dab tsi?

Polyamide 6.6 granules txhawb los ntawm 25% iav fiber ntau.

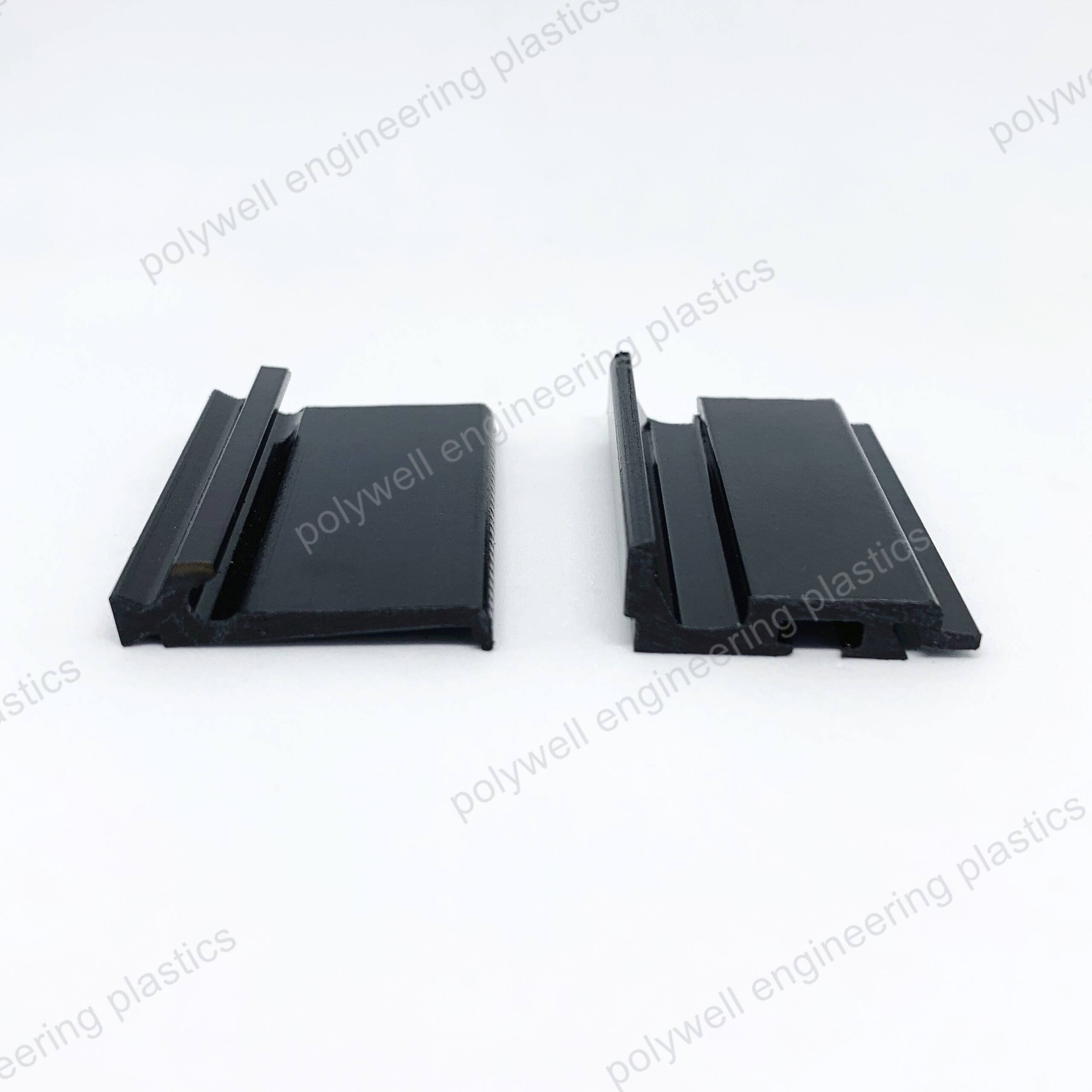

Polyamide thermal so profiles yog dab tsi?

Polyamide yog siv rau ntau tshaj 30-50 xyoo los tsim cov strips uas ua haujlwm thermal so. Qhov no yog vim qhov tsawg thermal conductivity uas polyamide boasts ntawm. Xws li cov cuab yeej pab polyamide txo qhov kev hloov pauv ntawm cov cua sov thiab txias los ntawm cov ntaub thaiv phab ntsa. Polyamide strips kuj tuaj yeem coated nrog hmoov los yog anodized. Tag nrho cov no yuav ua kom ntseeg tau tias cov ntaub thaiv phab ntsa haum txawm tias tiv thaiv huab cua hnyav, uas suav nrog cua daj cua dub, ua rau UV rays, tsis tu ncua corrosion, thiab lwm yam.

Lub luag haujlwm ntawm yas extruder yog dab tsi?

Plastics extrusion yog cov txheej txheem tsim khoom ntim siab uas cov yas nyoos yog yaj thiab tsim rau hauv ib qho profile txuas ntxiv. Extrusion tsim cov khoom xws li cov yeeb nkab / tubing, weatherstripping, fencing, lawj railings, qhov rais thav duab, yas zaj duab xis thiab ntawv, thermoplastic coatings, thiab hlau rwb thaiv tsev.

Lub extrusion tsim cov khoom ntawm peb cov yas extruder yog thermal so polyamide strips.

Tshuab yam ntxwv:

1. Lub thoob yog rhuab los ntawm stainless hlau rhaub, withstand voltage 400V.

2. Lub tshuab ziab khaub ncaws ua rau cov khoom siv raw convection nrog cua kub uniformly, thiab ziab uniformity yog zoo. Nws cov txheej txheem thermal rwb thaiv tsev tiv thaiv cov cua sov dissipation thiab txhawb kev txuag hluav taws xob.

3. Cov ntsia hlau tshiab tshwj xeeb kom paub tseeb tias lub tshuab muaj kev siv hluav taws xob tsawg, muaj peev xwm zoo plasticizing thiab ruaj khov extrusion ntws.

4. Lub extruder siv cov khoom zoo carbide twin-screws los xyuas kom meej cov yas siab ntawm PA66GF25 granules

5. Ib cheeb tsam tswj qhov kub thiab txias tswj tau los ntawm ib lub rooj, thiab qhov kub thiab txias tuaj yeem tswj tau ntawm ± 1 ℃.

FAQ

Q: Koj tus MOQ rau polyamide strip extrusion tshuab yog dab tsi?

A: 1 set.

Q: Raws li tus neeg ua si tshiab ntawm polyamide strips extrusion, peb kawm siv lub tshuab li cas?

A: Polywell yuav muab cov ntaub ntawv thiab cov yeeb yaj kiab los pab cov neeg siv khoom siv lub tshuab. Yog tias cov neeg siv khoom xav tau, peb kuj tuaj yeem muab kev pabcuam hauv chaw cob qhia.

Q: Peb puas tuaj yeem kho thiab yuav cov khoom siv raw thiab pwm?

A: Peb tuaj yeem muab txhua yam khoom lag luam ntsig txog polyamide thermal so profiles ntau lawm. Xws li cov khoom siv raw, pwm, lub tshuab txiav, lub rooj ua haujlwm, lub tshuab winder thiab lwm yam.

Q: Lub warranty rau koj lub tshuab yog dab tsi?

A: Rau lub tshuab extruder, nws yog ib xyoos. Peb muaj kev ntseeg siab rau peb cov khoom, thiab ntim lawv zoo ua ntej xa khoom, yog li feem ntau koj yuav tau txais koj qhov kev txiav txim zoo. Txhua qhov teeb meem zoo, peb yuav daws nws tam sim ntawd.

Q: Koj cov nqe lus them nqi yog dab tsi?

A: 50% T / T tso nyiaj ua ntej ntau lawm, 50% T / T tshuav nyiaj li cas ua ntej thauj khoom.

Peb qhov kev pabcuam

Ib tug rau ib qho kev pab tswv yim.

Cov kws tshaj lij engineers los tham txog cov ntaub ntawv kev, tsim duab kos duab.

Zoo meej kev thauj mus los ntawm hiav txwv lossis huab cua.

Kev pab cuam tom qab muag txawv teb chaws.

Pab pawg kws tshaj lij engineers.

Zoo siab txais tos tuaj xyuas lub Hoobkas txhua lub sijhawm.

PA66GF25 PolyamideProfiles ExtrusionMua mob Kuvsuav nrog:

Xaiv Polywell txhais tau hais tias xaiv qhov tseeb ntawm tus khub txhim khu kev qha, tuaj yeem pab pawg thiab muab kev txhawb nqa txhua hnub. Peb nyob qhov twg koj xav tau peb, thaum twg koj xav tau peb.
