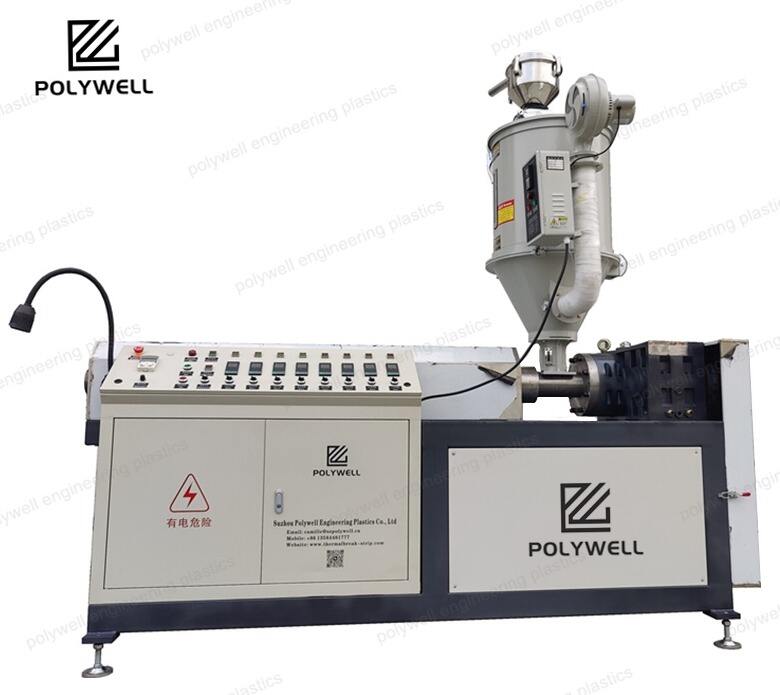

Automatic Economical Extrusion Plastic PA66 Nylon Plastic Making Machine Heat Insulation Strip Polyamide Extruder Machine

After-sales Service : Engineers Available to Service Overseas
Warranty : 1 Year
Type : Profile Extruder
Plastic Processed : PA66-gf
Product Type : Profile Extrusion Molding Machine
Product Type : PA profile
Feeding Mode : One Feed
Assembly Structure : Separate Type Extruder
Screw : Single-Screw
Engagement System : Non-Intermeshing
Screw Channel Structure : Deep Screw
Exhaust : Don’t Exhaust
Automation : Automatic
Computerized : Computerized / Non-computerized
Transport Package : Plastic Foam Film or Plywood Case
Specification : 60mm/70mm/80mm
Trademark : Polywell
Origin : Zhangjiagang City, China
Material : Polyamide, Glass fiber
Usage : Produce Polyamide Strips
Plastic Properties After Heated : Thermoplastic Plastics
Plastic Forming Method : Extrusion
Application : Thermal Break Aluminum Profiles Production
Power : 15-20 kw
Weight: 900-1000 kgs
Speed: Around 8-14 cm per min
Suitable Strip Shape: All Kinds of Shape
HS code: 847720
Production Capacity: 40-50 sets per month
Customized : Customized

Polyamide Thermal Strip Processing Process

PA66GF25 granules are dried and get into the machine barrel through the hopper. The granules are in rotary contact with the machine screw, and move towards the mold with the rotation of the screw.

As the gap of machine screw and barrel is small, the granules are heated in the gap under the process of moving forward. They are plasticizied to nylon molten state through the high temperature of the electric heating ring body. The molten state of nylon is diverted and shaped after entering the mold, and finally extruded into heat insulation strips.

Plastic extruder for polyamide strips, also known as production machines for thermal break strips, are essential tools in the manufacturing industry. These machines, specifically the single screw extruder, play a crucial role in the process of plastic extrusion. By utilizing heat and pressure, they transform raw polyamide materials into high-quality strips that are widely used in various applications.

What does a plastic extruder do?

Plastics extrusion is a normally high volume manufacturing process where a polymer material, enriched with the desired additives, is melted and formed in a continuous process. The raw material (polymer) in the form of granulates, is gravity fed into the hopper and through the feed throat, drops on a rotating screw.

What is the raw material of PA plastic profile extrusion machine?

Polyamide6.6 granules reinforced by 25% glass fiber.

What is included in the PA plastic profile production line?

1. PA strips extrusion machine with automatic feeding machine and hopper dryer

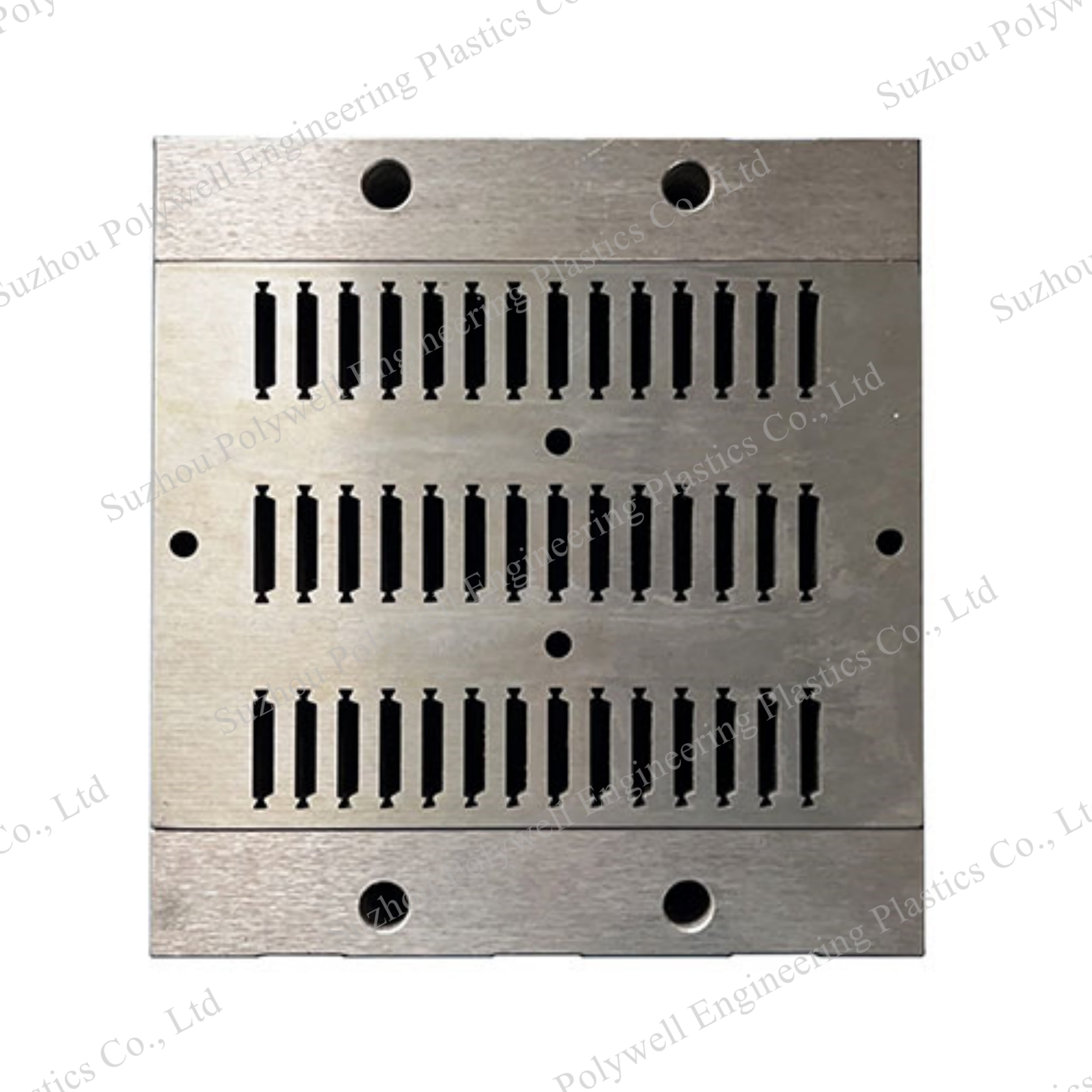

2. PA plastic moulds and dies

3. Cutting machine

4. Worktable or winder

What is polyamide thermal break profiles?

Polyamide is used for over 30-50 years to create strips that serve as thermal breaks. This is because of the low thermal conductivity that polyamide boasts of. Such a property helps polyamide reduce the transfer of heat and cold through the curtain walls. The polyamide strips can also be coated with powder or anodized. All of these would further ensure that the curtainwalls are fit even to counter the harsh weather, which includes fierce cyclones, damaging UV rays, regular corrosion, and more.

What is the purpose of extrusion machine?

Extrusion is a technique where molten polymer is forced through a die and is used to produce components of a fixed cross-sectional area such as polyamide thermal break profiles.

What plastics can be extruded?

There are more than 20 different types of thermoplastics that can be extruded. Some of the more common ones include polyethylene, polypropylene, polystyrene, polycarbonate, PVC and ABS, all of which can be easily heated and then pressured in a mould to form different plastic profiles, tubes and sections.

But we mainly sell PA6.6 gf25 heat insulation profile extrusion machine.

Machine Characteristic:

1. The barrel is heated by stainless steel heater, withstand voltage 400V

2. The professional dryer makes raw material convection with hot air uniformly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

3. Special new screw make sure the machine has low energy consumption, good plasticizing ability and stable extrusion flow.

4. The extruder uses high-quality carbide twin-screws to ensure high plasticization of PA66GF25 granules

5. One temperature control zone controlled by one table, and the temperature accuracy can be controlled at ±1℃.

Features of our extruder:

1. The professional dryer distributes the material and hot air evenly, resulting in good drying uniformity.
2. The machine screw is a high-quality cemented carbide screw that ensures high plasticization of the PA66GF25 material.
3. The main engine is energy-efficient, and the speed is constant. The speeds of the main and auxiliary machines can be synchronized.
4. One imported temperature control meter controls a single temperature control system, ensuring temperature accuracy of ±1°C.
5. The machine screw barrel is heated with a stainless steel heater that can withstand 400 V.

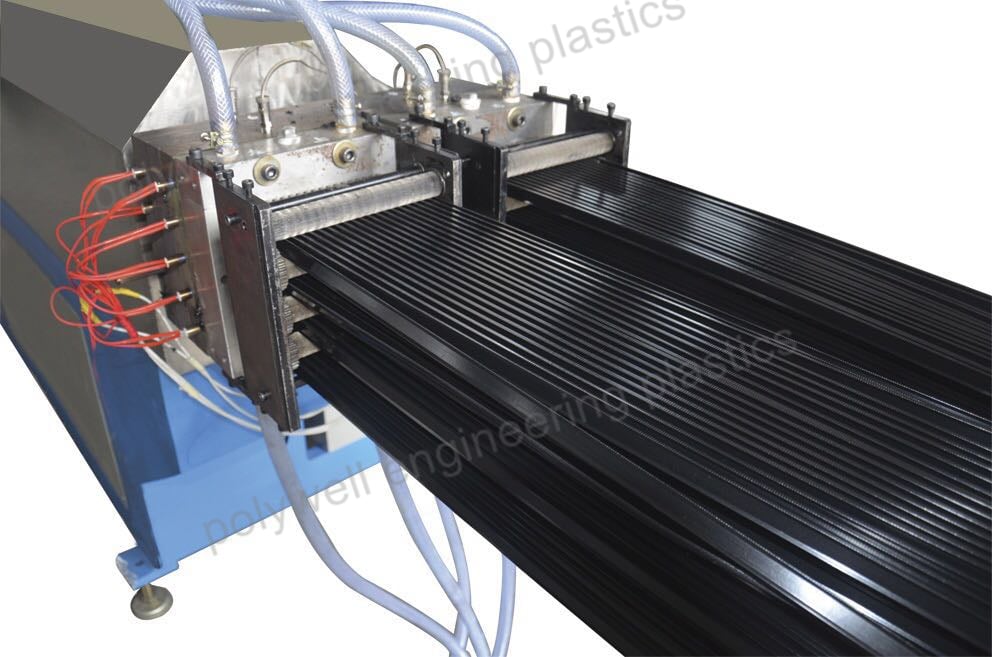

6. The die head is made using German advanced technology, with a short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerances and high strength.
7. Worktable table with stainless steel strip setup position.The length of worktable is adjustable.
8. Winding machine: The torque motor control system adjusts the winding tension. Each roll specifies 300-600 meters.

FAQ

Q: What is your MOQ for the polyamide strip extrusion machine?

A: 1 set.

Q: As new player of polyamide strips extrusion, how we learn to use the machine?

A: Polywell will provide paper and videos files to help customer operate the machine. If customer needs, we can also provide on site training service.

Q: Can we customize and buy the raw materials and molds?

A: We can provide every product related to the polyamide thermal break profiles production. Including the raw material, the mold, the cutting machine, the worktable, the winder and so on.

Q: What is the warranty for your machine?

A: For extruder machine, it is one year. We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.

Q: What is your payment terms?

A: 50% T/T deposit before production, 50% T/T balance before loading.

Our Service

One to one consulting service

Experienced senior engineer to discuss technical data, designed drawing

Perfect arrangement of sea or air transport

Overseas aftersales service

Professional engineers team

Welcomed to visit the factory at any time

Choosing Polywell means choosing the certainty of a reliable partner, able to team up and offer daily support. We are where you need us, whenever you need us.

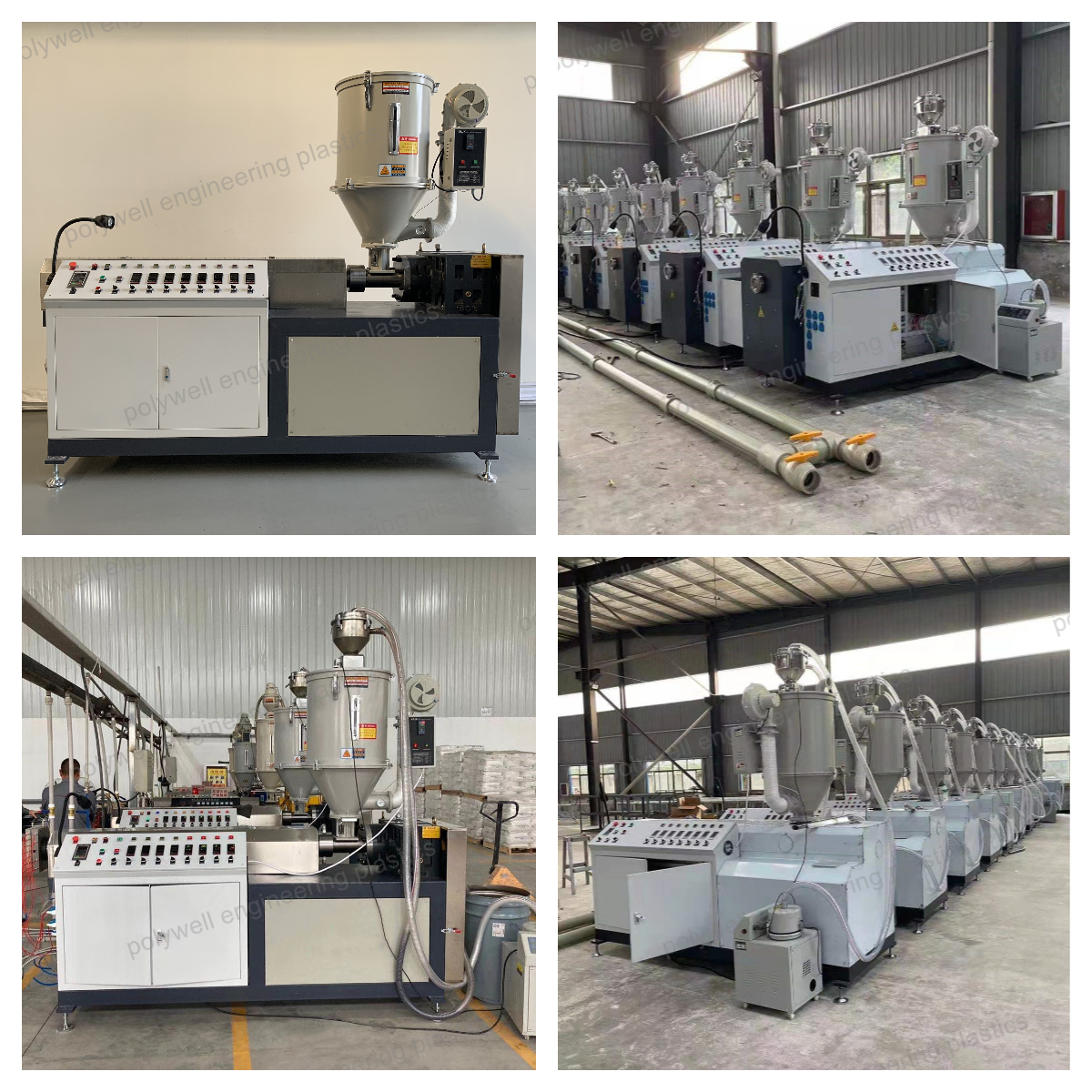

PA66GF25 Polyamide Profiles Extrusion Machine Including:
